Ferrari F430 Battery Replacement

Time to put my money where my mouth is – one piece of advice that I dispense to people who have bought a new (to them) Ferrari is to replace the battery since I firmly believe that the cornerstone to worry free motoring in a modern Ferrari is a solid power supply.  These cars are packed full of electronics that are very sensitive to voltage fluctuations.  A good battery that is kept in tip top condition on a battery tender will ensure that the electronic systems do not have any excuse to throw false flag errors.

I was asked a while back if keeping a battery on a tender could potentially hide problems with the battery itself.  The answer to this is very much  yes and is something I have encountered with my F430.  The car seems to have been kept on a tender by the previous owner and I continued to do the same.  The car always started on the button and I’ve not experienced any battery issues during my ownership.  That was until I had to store the car at a neighbours house due to building work at my own abode.  There was no power at the temporary parking spot and after a week of non use the battery would be depleted enough not to crank the engine.  The battery was toast and I had the laborious job of removing it and charging it out of the car (jump starting can cause big problems).

Battery selection for me is easy – I prefer Bosch units and fit the best that they have available.  Recently, Bosch have introduced the S6 at the top of their offering so that is what I went for.  The battery is an AGM type which means it is completely sealed and doesn’t need venting – perfect for mounting inside the cabin.  The Bosch designation is S6001 in their catalogue but S6008 on the battery itself (the UK size is “096”).  It wasn’t cheap at £155 but then I feel my car deserves the best.

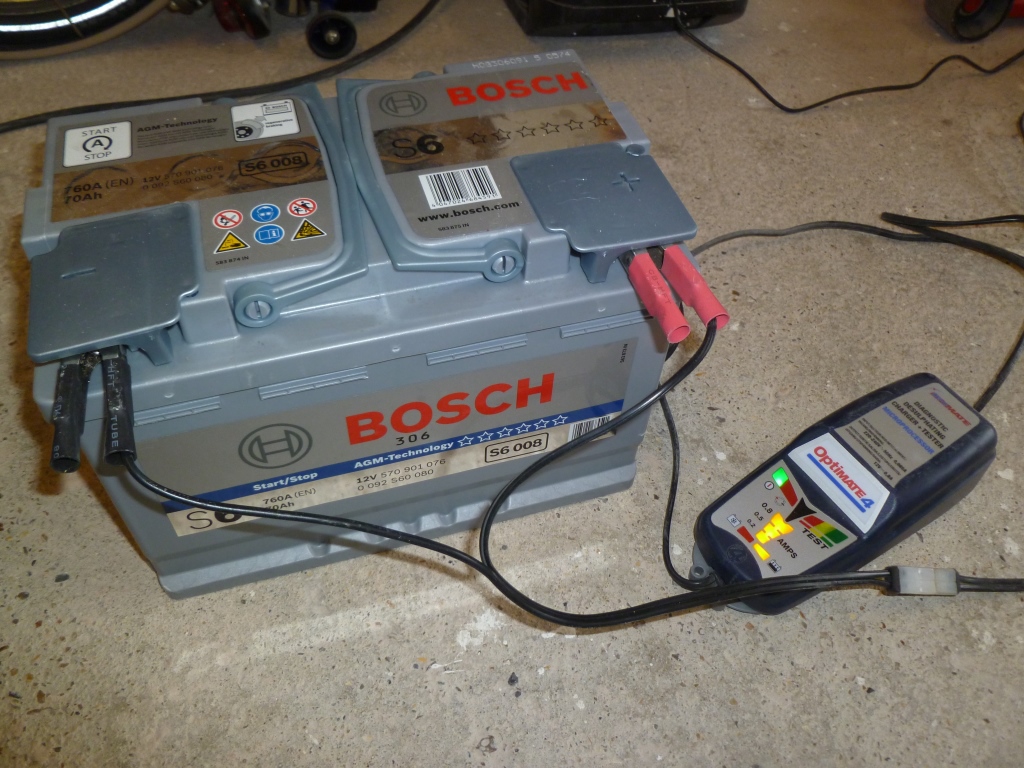

Even though the batteries are shipped fully charged I put it on the tender anyway to top it up:

P1040888

It’s worth noting that one should take care when matching a battery and tender/charger.  AGM Batteries prefer constant current type chargers and will be spec’d with a maximum bulk charging voltage.  The S6 battery has a maximum voltage of 14.8v – my optimate 4 is a constant current type with a maximum charging voltage of 14.3v.

To fit the battery was time consuming and awkward.  Firstly, before embarking on any electrical work the battery must be isolated.  In the front trunk there is the battery cut off switch – turn it clockwise and remove the key:

P1040895

Next remove the footrest.  There are two M6 screws holding it in place behind the flap of carpet:

P1040897

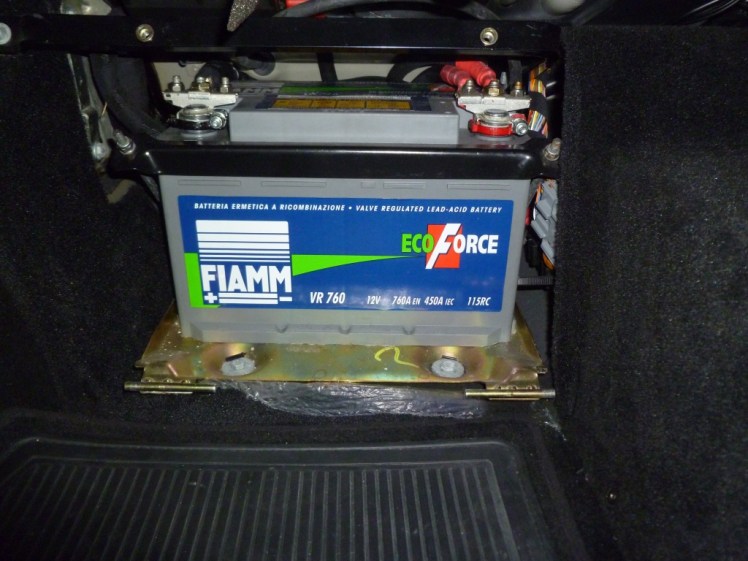

The footrest can then be withdrawn from the car.  The battery looked like it was the original factory fit FIAMM unit making it nearly 9 years old – definitely time to be replaced.

P1040901

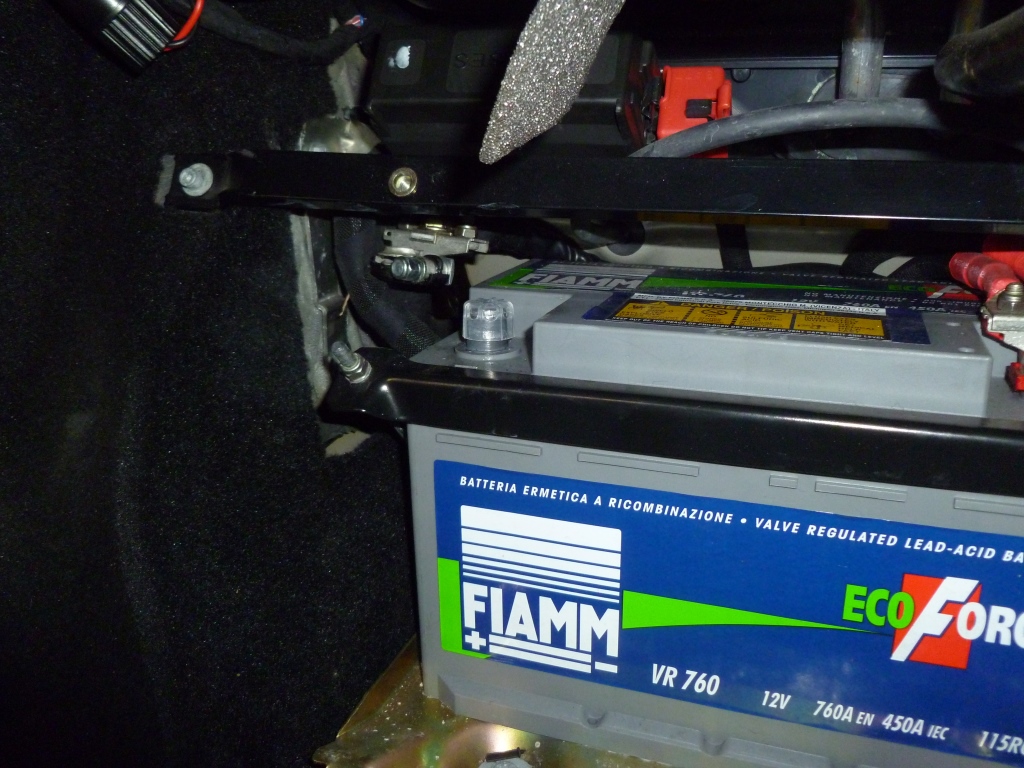

Next remove the wiring from the negative terminal of the battery (10mm socket).  In order to prevent an accidental connection I placed a small cap over the terminal (the cap was taken from one of my daughters fruit drinks).

P1040903

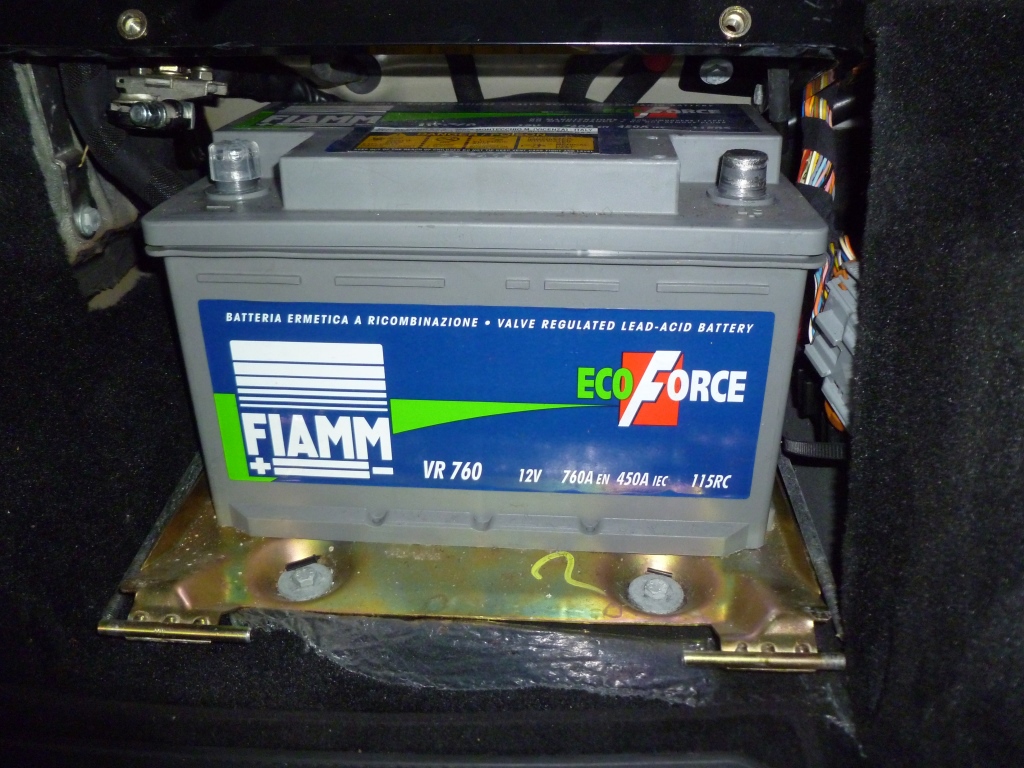

Next undo the leads from the positive terminal of the battery (10mm socket) and tuck the wires out of the way.  Still using the 10mm socket, the two nuts holding the battery strap in place can be undone and the strap withdrawn:

P1040906

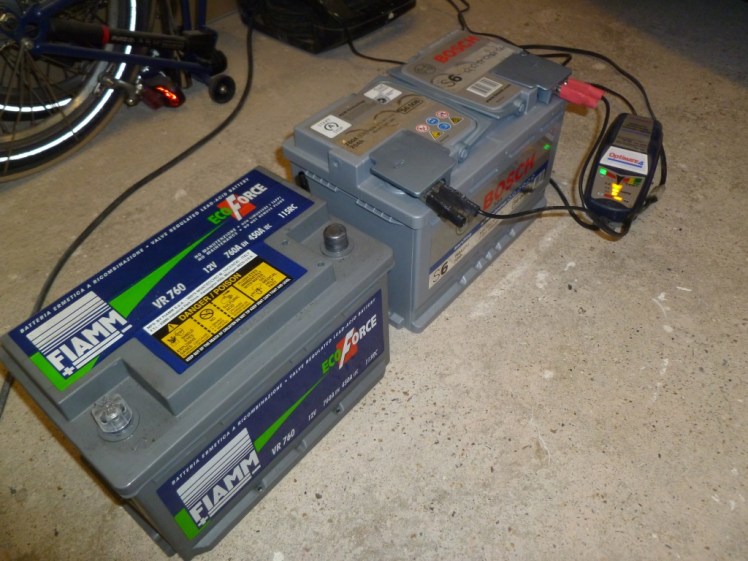

The battery can then be removed from the car.  Here are the two units side by side:

P1040908

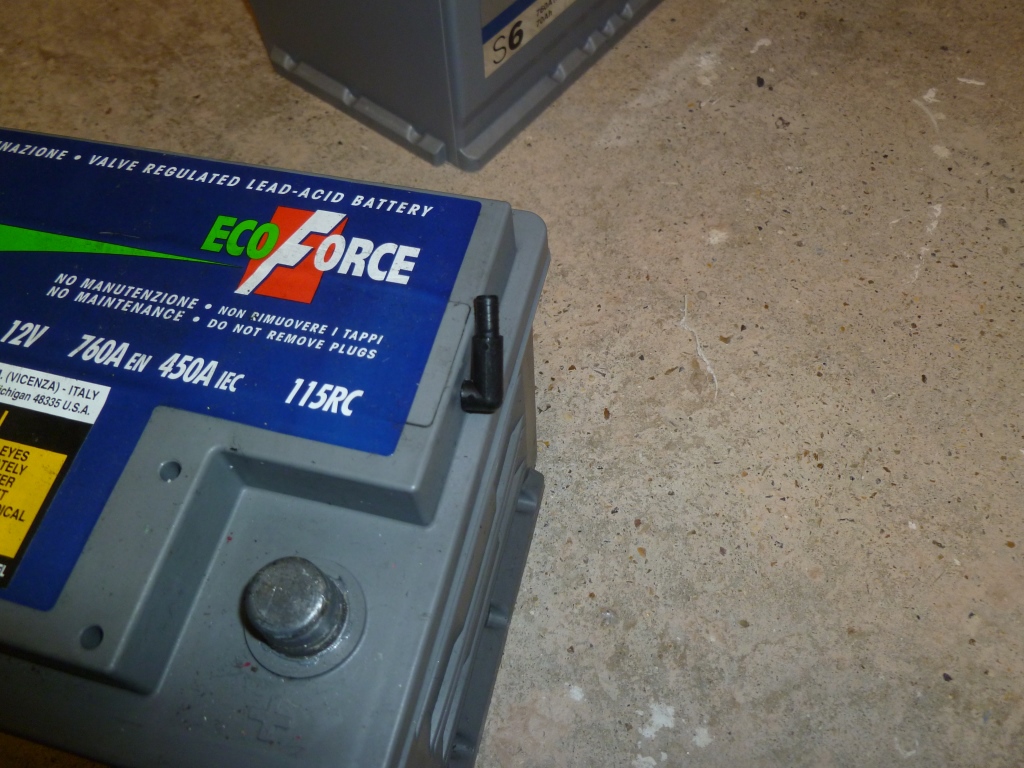

You will notice that the FIAMM battery is slightly shorter than the Bosch.  The FIAMM also has a vent whereas the Bosch does not.  I removed the elbow from the FIAMM and re-fitted it to the vent pipe in the car and tucked it out of the way.

P1040909

Here’s where it became a little tricky.  The Bosch battery was slightly taller than the FIAMM which meant that in order to be able to secure it in place with the strap I needed to re-route the cables so they didn’t jam down the back of the battery.  In a 360 there is more room as there isn’t a fuseboard in the way as there is in the F430.

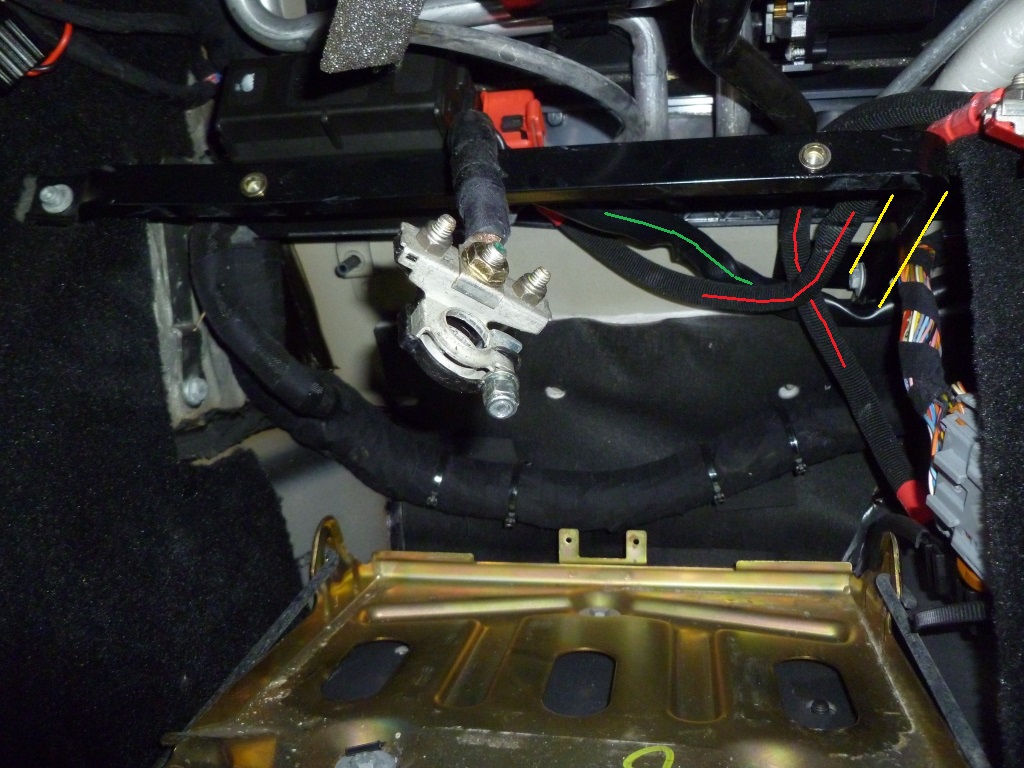

In the picture below you can see that both the positive wires (marked red) and the negative wire (marked green) pass underneath and to the left of the footrest bracket (marked yellow):

P1040911

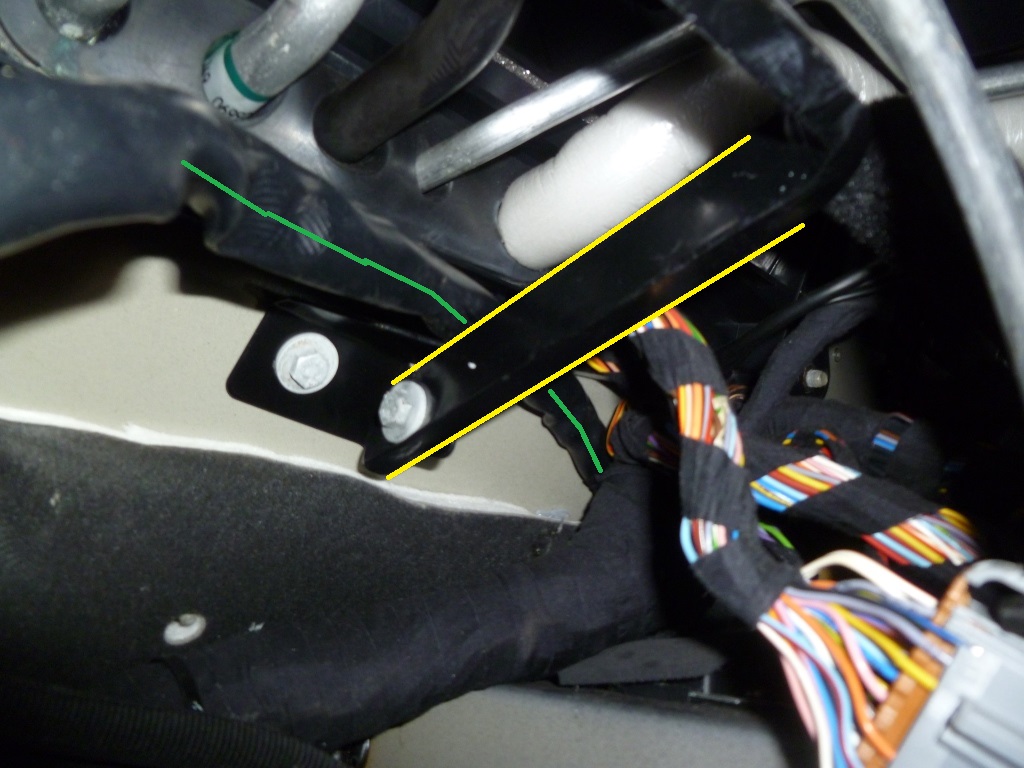

Both cables need to pass over the top of the footrest bracket.  I started with the negative cable – this can be re-routed by threading it over the bar:

P1040914

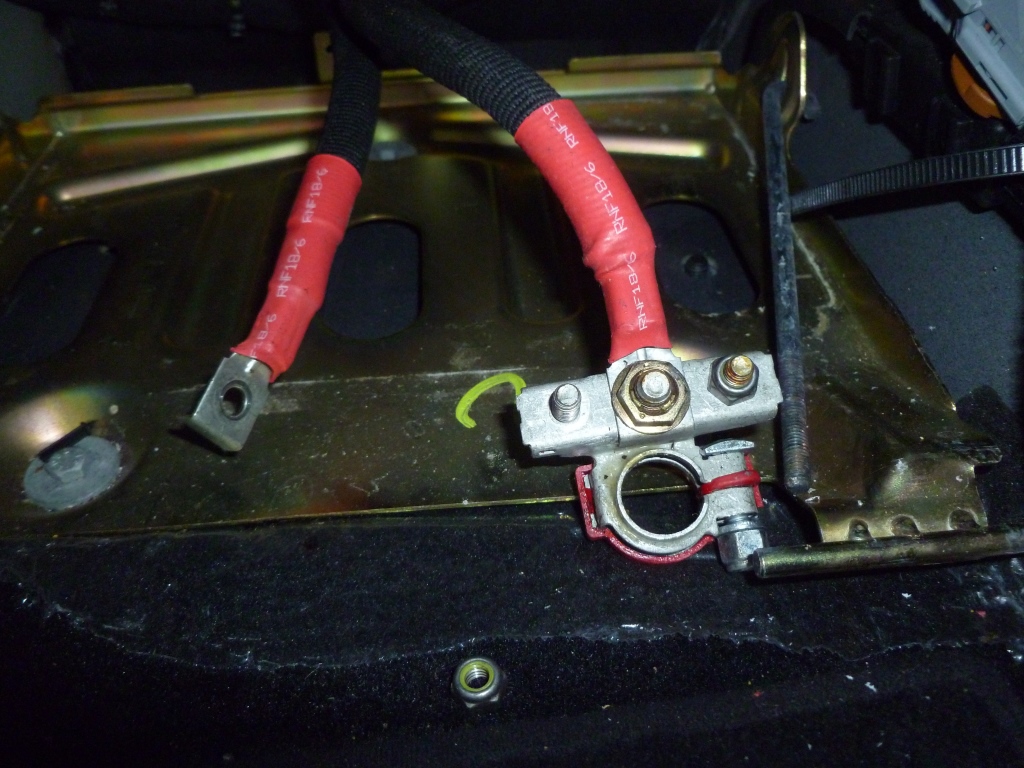

Next the positive terminal needed to be split – I undid one of the cables by removing a 10mm nut:

P1040918

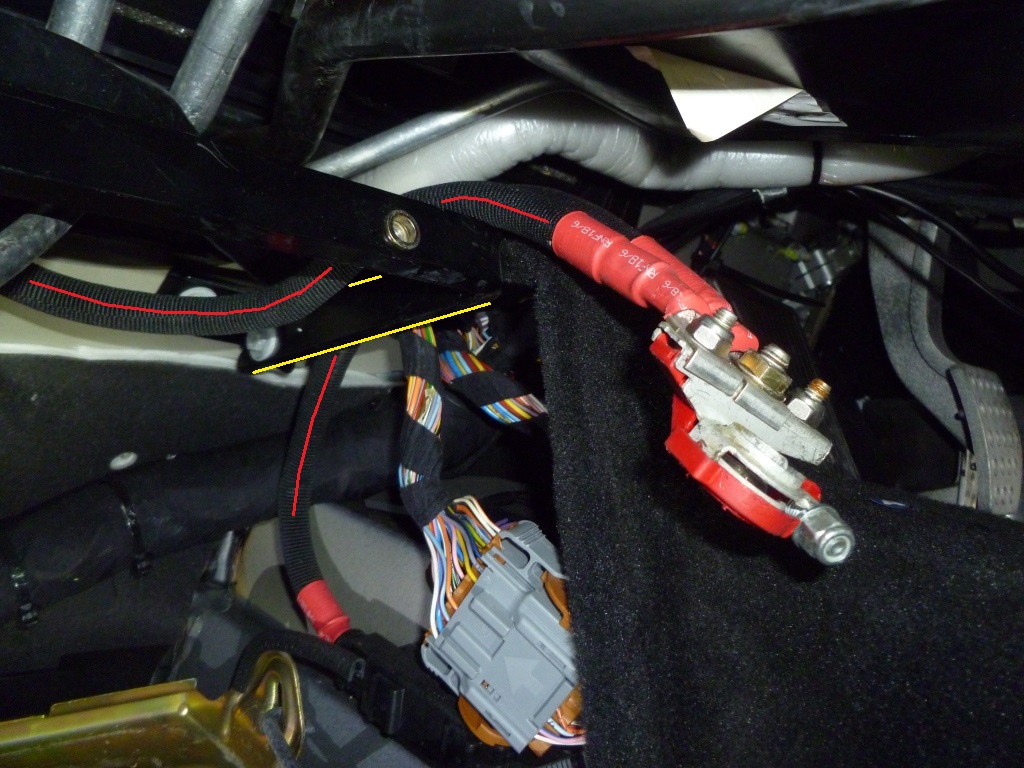

Then the positive wires can be routed over the bracket and the cables re-joined at the terminal:

P1040920

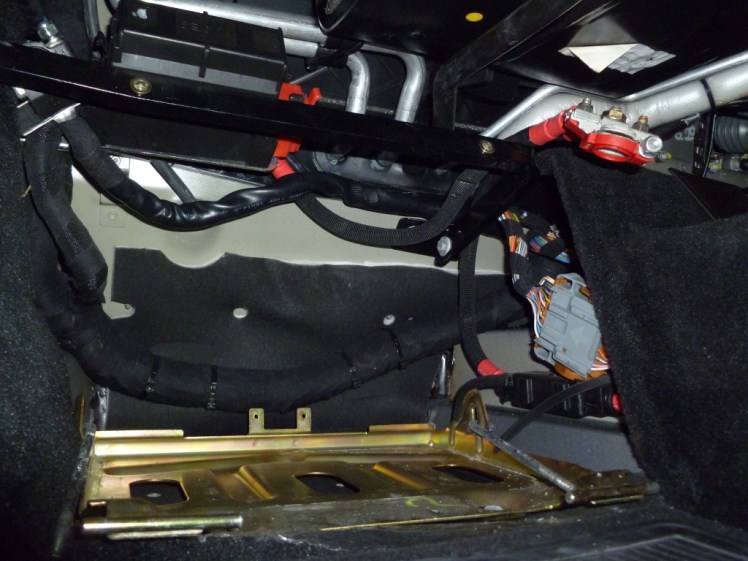

I tucked the negative wire up to the left hand side of the fuseboard, leaving a nice clear space for the battery:

P1040922

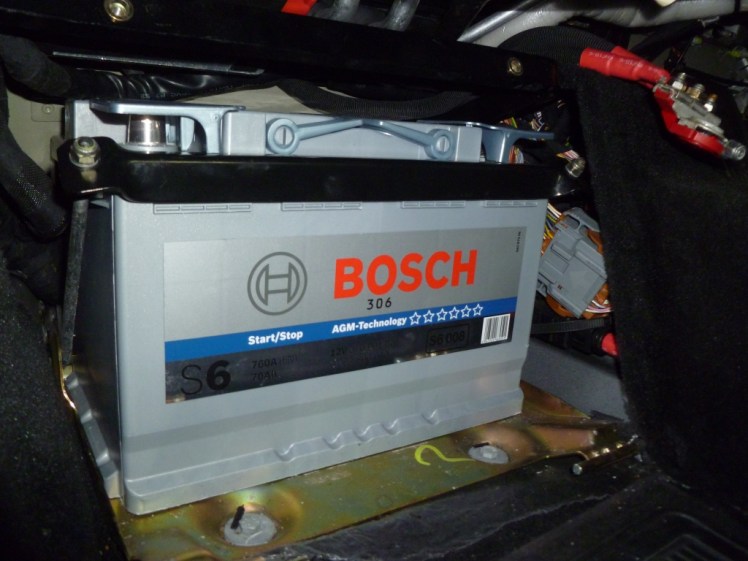

I then slid the battery home and fitted the strap in place.  Note that I left the terminal covers in place to prevent an accidental shorts.

P1040925

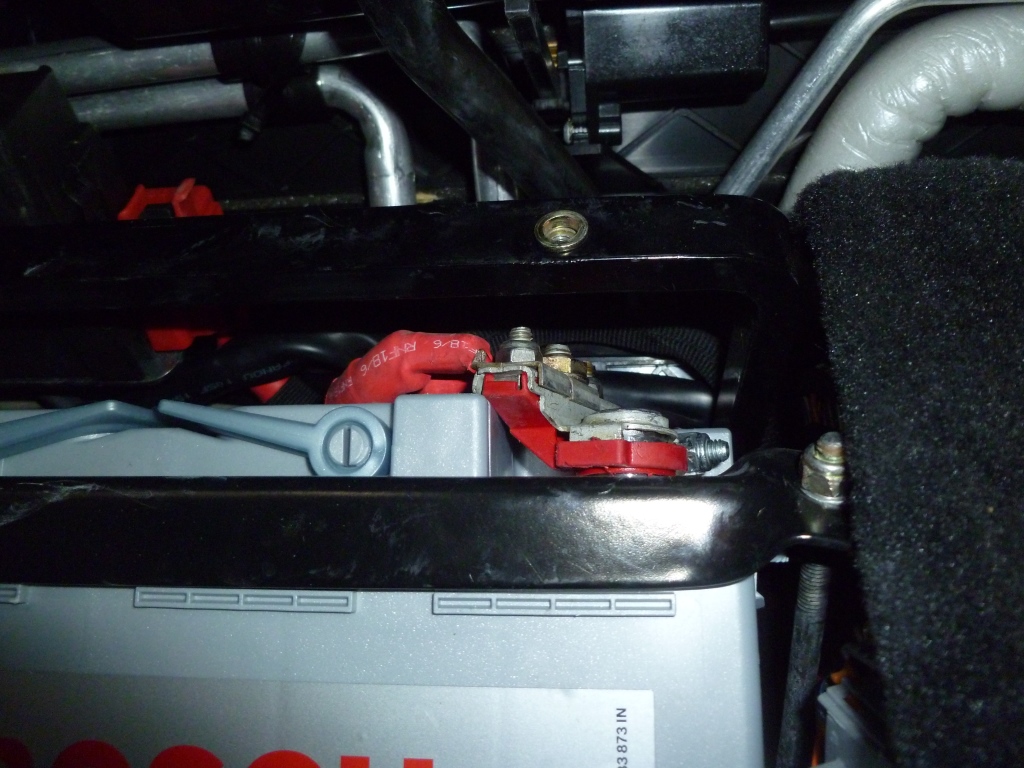

The positive wire was reconnected first.  Due to the new routes of the wire the clamp had to be fitted in a slight rotated position.

P1040928

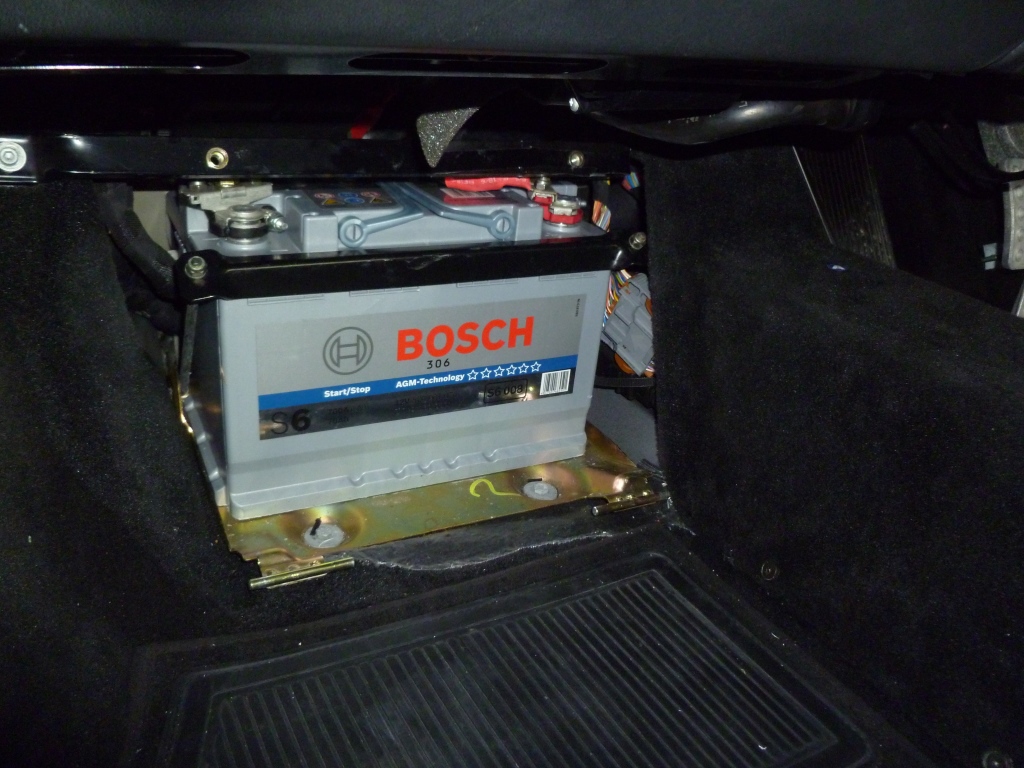

Then the negative terminal was connected.

P1040931

The footrest can then be refitted and the battery cut off switch replaced.  Don’t forget to leave the ignition on without cranking the engine for at least 10 seconds in order for the motor driven throttle bodies to relearn their positions.  It’s also a good idea to idle the engine for a while so the ECU’s can relearn their adaptive parameters.

Related posts:

If you enjoyed this post why not subscribe to this blog for further updates? Simply enter your email address in the box at the bottom of this page.  Your email address will not be shared.


10 thoughts on “Ferrari F430 Battery Replacement

  1. Aldous
    Why is it that an AGM battery which is essentially a lead/acid battery doesn’t require a vent?
    Alan

    1. Hi Alan,

      It’s becuase the electrolyte is immobilised in the glass matt. Wikipedia has a good explanation (link) and I reproduce a section below:

      VRLA batteries attempt to avoid all of these problems by immobilizing the electrolyte. In doing so, the hydrogen is trapped near the plates, and is available for re-combining when the battery is re-charged. This dramatically reduces the water loss during repeated charge/discharge cycles, and generally makes them “maintenance free”. It also reduces the amount of hydrogen build-up to the point that no venting is required, and the batteries can be completely sealed, which in turn allows them to be used in any orientation without fear of spilling.

      Thanks,

      Aldous.

  2. VRLA means that the battery has valve that controls the vent, this is a form of safety valve that prevents the battery from exploding in the event of a malfunction, the valve will open to relieve any pressure build up, the Bosch must have a similar device, it just discharges into the footwell – not good 😦 Varta have a version of the FIAMM battery, but I couldn’t get it to fit.

  3. Aldous
    What do you attribute the failure to — keeping it on the tender or the fact that it was so old? I always keep mine on the CTEK when parked in my garage.
    Alan

  4. Hi Aldous,
    I have an 07 F430 Coupe (USA – left hand drive) and plan on changing the battery this weekend to an odyssey 34R-PC1500T-A. I’ve been reading over your post and plan to follow the outlined steps, however, I dont see a battery cutoff switch in the front trunk. I actually have a small rubber cap in the location where you have the battery cut off switch, I removed the rubber cap and all i see is a piece of aluminum (part of the chassis?).

    Any insights on where the battery cutoff switch might be located?

    Thanks!

    Isi Jr

    1. It sounds like someone has removed your cut off switch. They have been known to fail (more so on the 360 though). You’ll be able to change the battery without using the cut off switch though – just follow the rest of the instructions.

  5. Well written very clear to follow with the photos my job this weekend to replace my battery thanks
