Ferrari 360 Battery Change

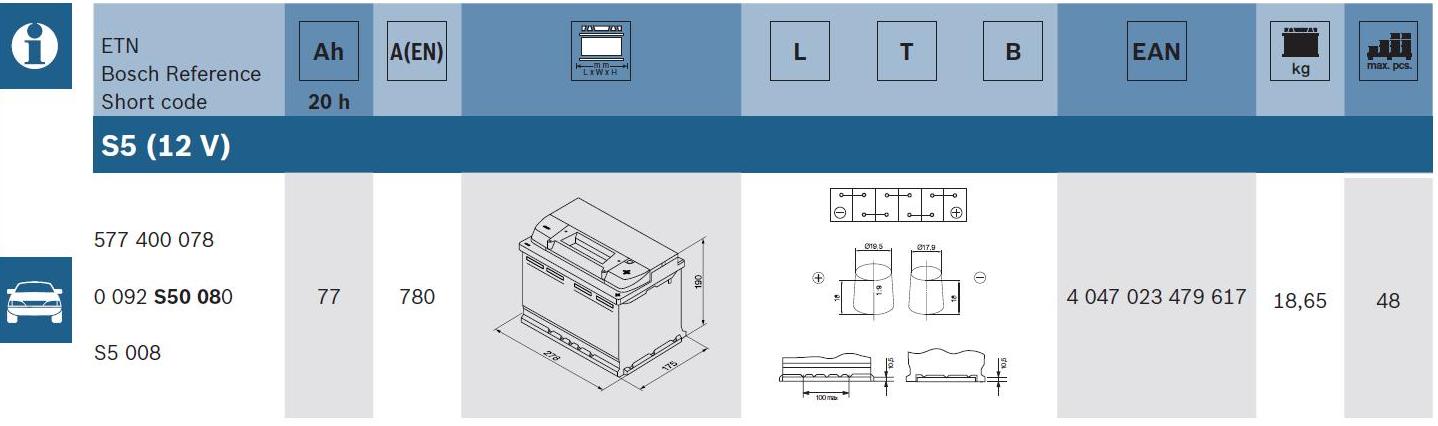

Changing the battery on a 360 is fairly straightforward.  The Ferrari factory battery is a FIAMM VR760 – in the UK this is called an “096”.  My preference is to fit Bosch S5 batteries – the correct battery is an S5 008 (Bosch ref 577 400 078):

Ferrari 360 Battery Change

The first thing to do is to open the front boot in order to access the battery cut off switch.  If your battery is completely dead there is a back up release cable under the glove box.  Here’s a picture of it looking upwards:

Ferrari 360 Battery Change

Turn the battery cut off switch clockwise until it clicks – the light inside the boot will go out.  This switch isolates the battery earth from the chassis and makes replacing the battery much safer.

Ferrari 360 Battery Change

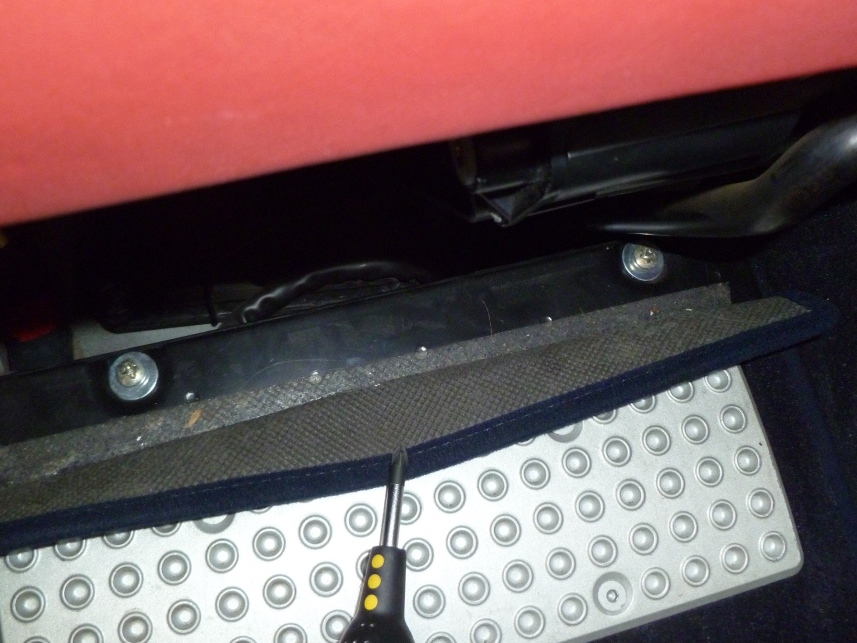

Now remove the two screws holding the footrest in place:

Ferrari 360 Battery Change

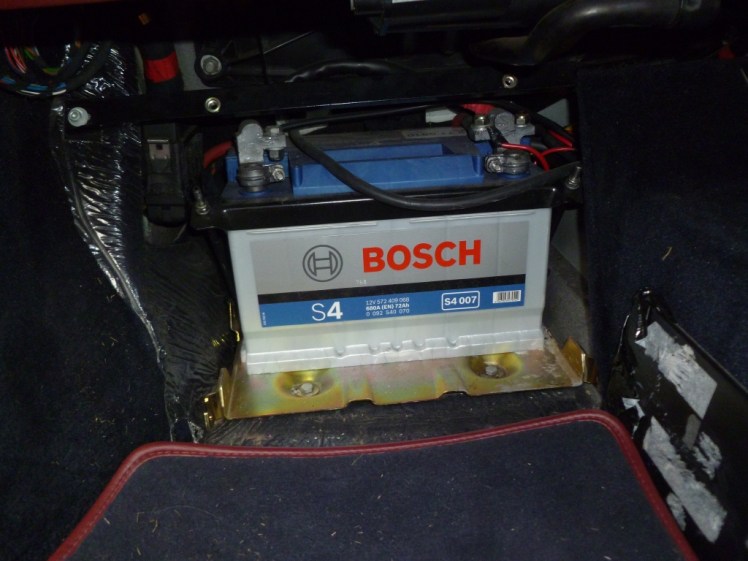

Once the top of the footrest has been undone the bottom can be unclipped and the unit removed from the car:

Ferrari 360 Battery Change

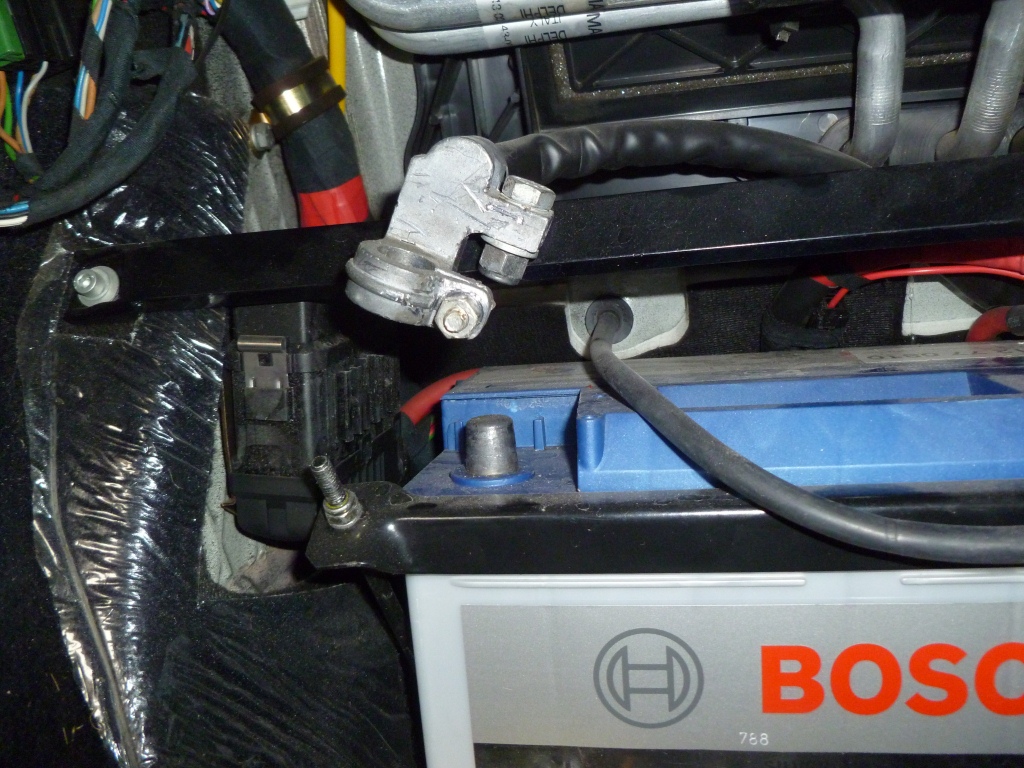

Undo the negative terminal first – it is held in place with a 10mm nut.  Loosen the nut and removed the clamp from the battery.  I prefer to hook the cable and clamp over the metal bar to ensure it does not come into contact with the terminal at all.

Ferrari 360 Battery Change

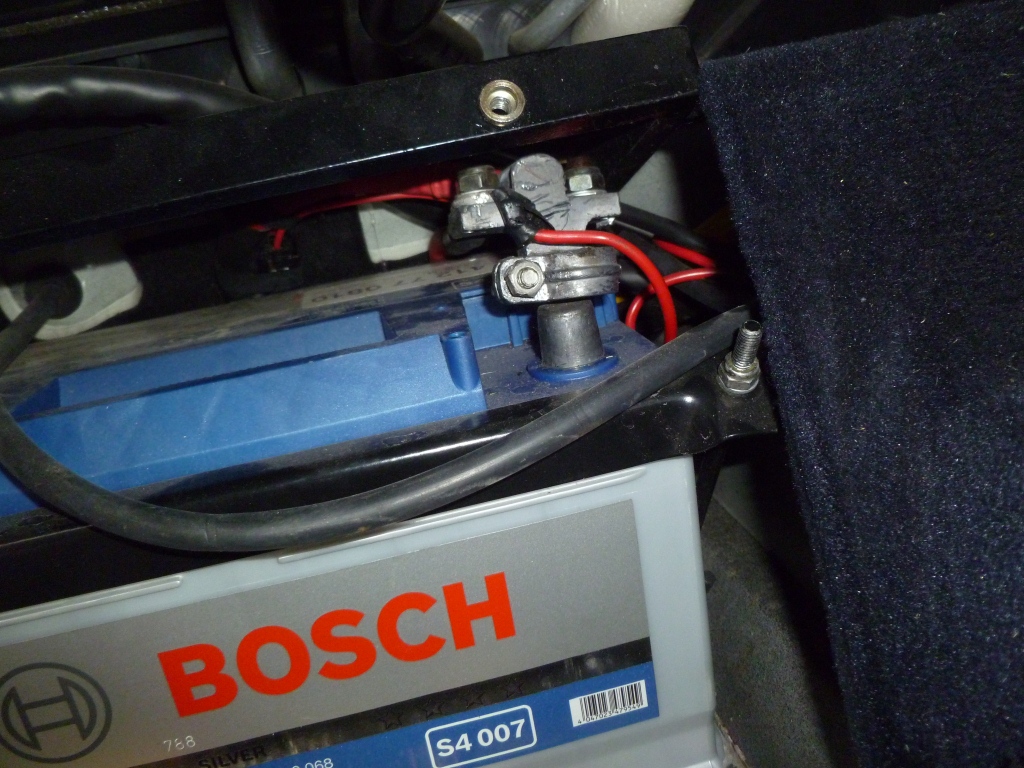

Now undo the positive terminal (10mm nut).

Ferrari 360 Battery Change

Next undo the two 10mm nuts holding the strap in place.  Withdraw the strap to make removing the battery easier.

Ferrari 360 Battery Change

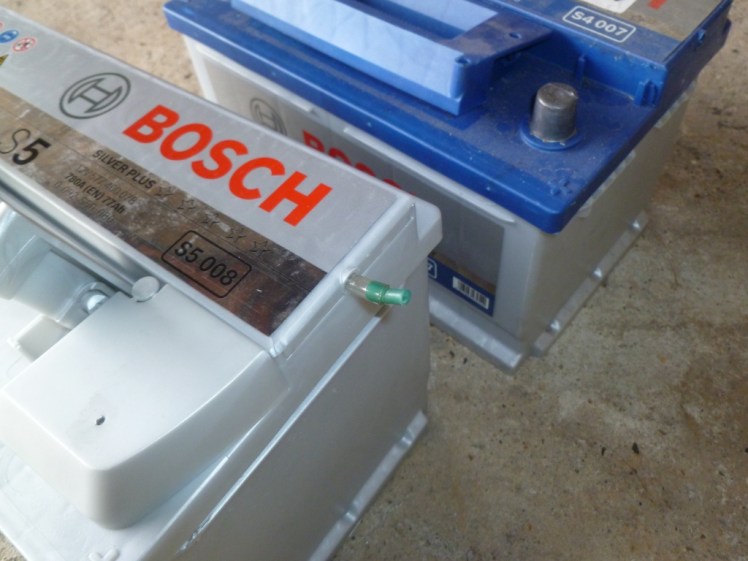

Remove the battery from the car.  Here are the old and new batteries side by side – note that the old one is the incorrect type and is slightly shorter.

Ferrari 360 Battery Change

Change over the vent pipe fitting:

Ferrari 360 Battery Change

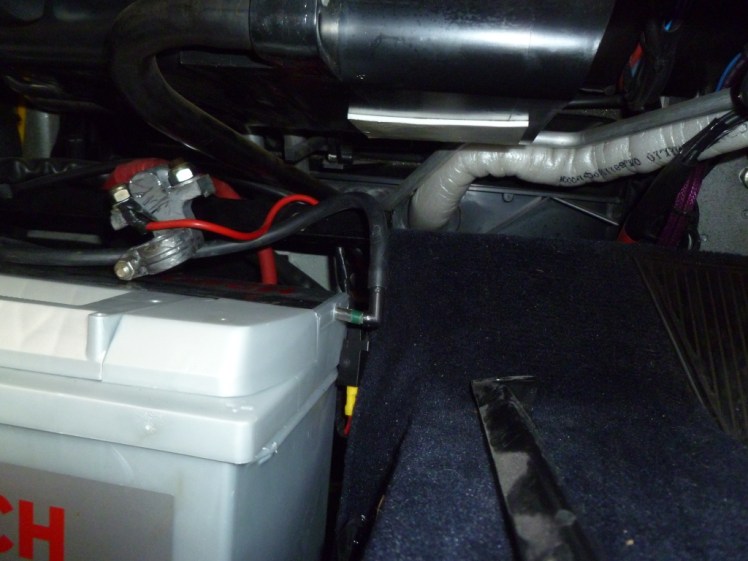

Now slide the new battery into place.  Take care not to crush any cables behind the battery and ensure the vent pipe is fitted correctly. I have shown a picture below of the vent pipe in place with the battery half way in place – in reality you’ll need to push the battery home before fitting.

Ferrari 360 Battery Change

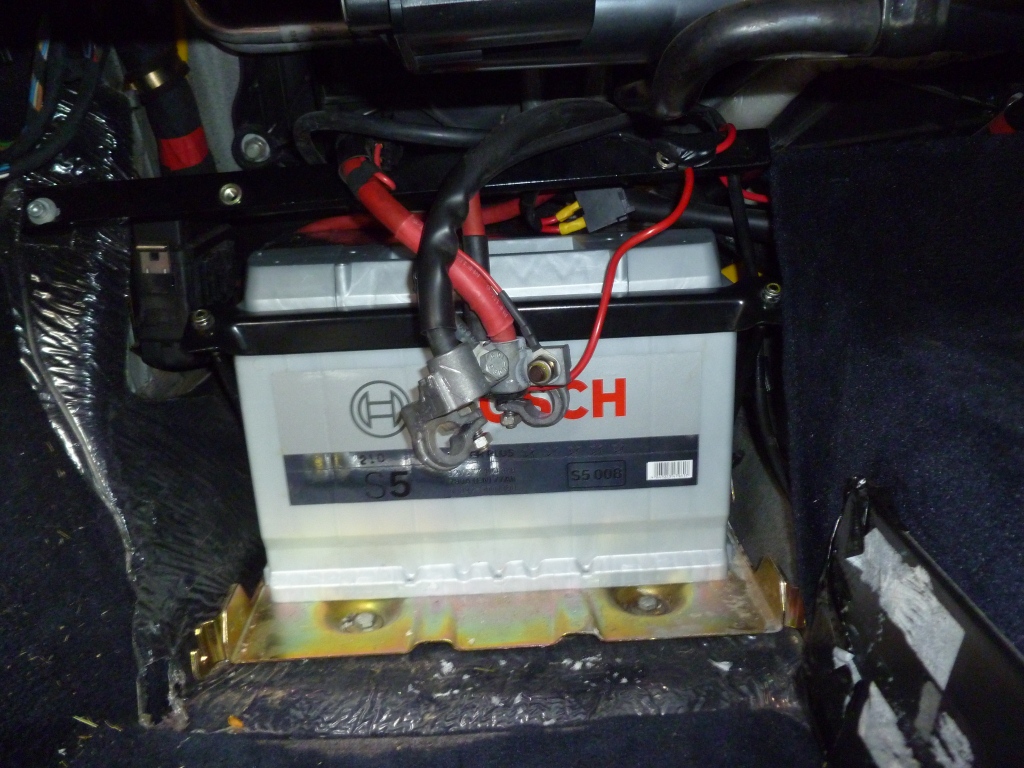

Now fasten the strap into place.

Ferrari 360 Battery Change

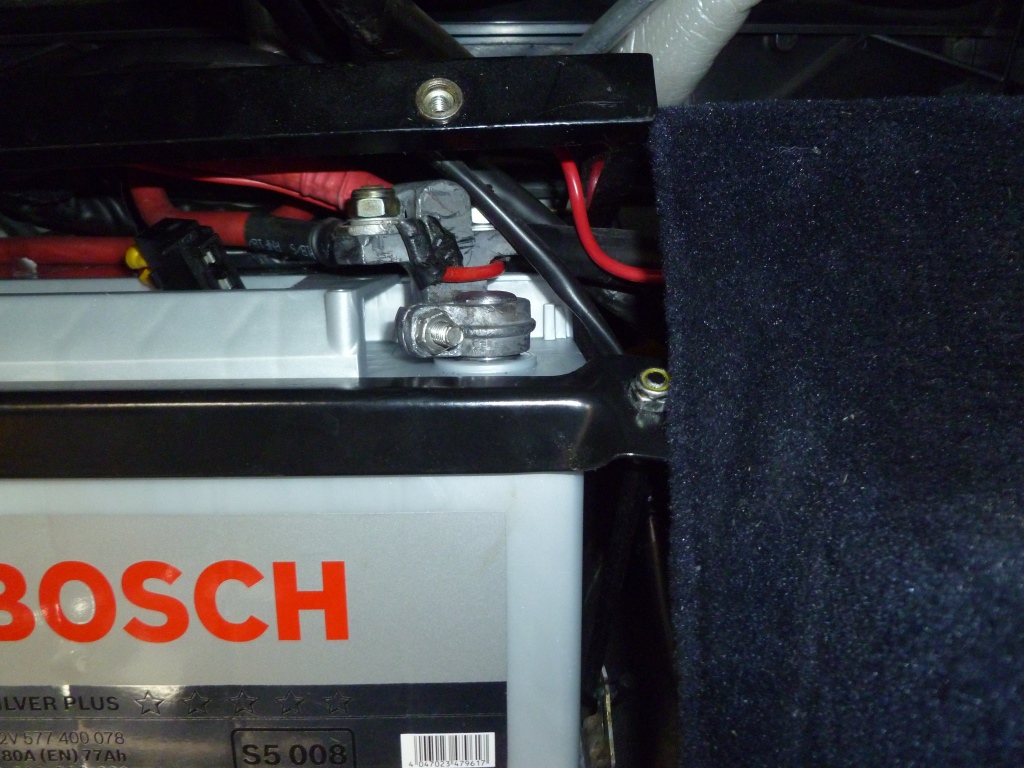

You will notice that I kept the plastic covers in place over the terminals whilst I fitted the battery – this was to ensure no accidental shorts.  Remove the covers and fit the positive terminal:

Ferrari 360 Battery Change

Fit the negative terminal – the alarm will chirp once when it is connected to the battery.

Ferrari 360 Battery Change

Refit the footrest and turn the battery cut of switch anti-clockwise to engage the power.  Make sure you wait 10 seconds with the ignition on but engine off before starting the engine and allow it to idle for 10 mins so it can relearn the adaptive values.
