Ferrari F430 Air Conditioning Service

Neglecting to change the receiver/dryer in your car can have expensive consequences.  The dryer, as the name suggests, removes moisture from the system which would otherwise damage the pump.  In a run of the mill car this wouldn’t be the end of the world but given the expensive nature of Ferrari parts, I would rather change the receiver periodically than pump ever.

The F430 has a slightly improved design over the 360, in that the receiver is connected to the system using aluminium fittings.  This negates the risk of damaging the pipework when removing the receiver due to bi-metallic corrosion.  The flip side is that the receiver is harder to get at than the 360…

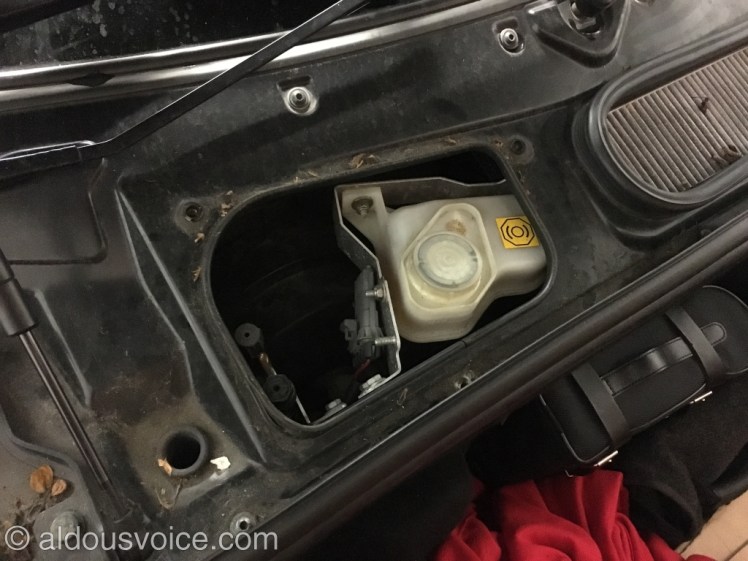

First of all the cover for the brake fluid reservoir needs to be removed.

IMG_0661

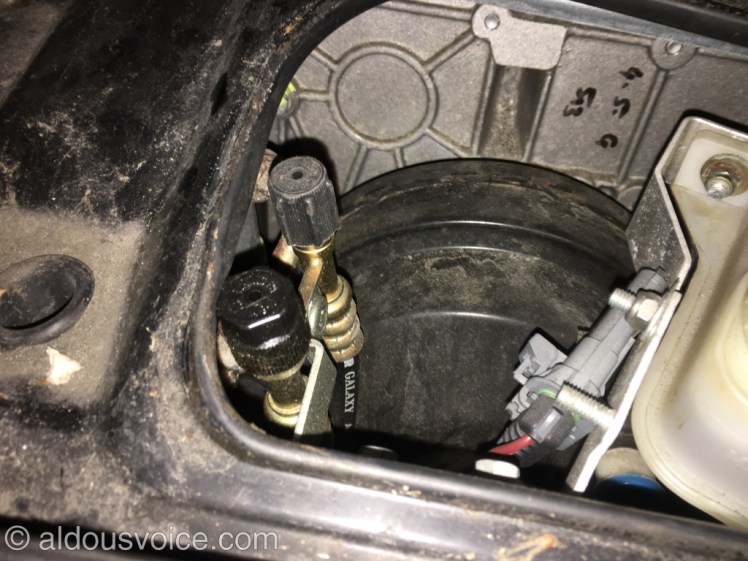

This actually reveals the the charge points for the air conditioning system which makes it easy to renew the refrigerant.

IMG_0662

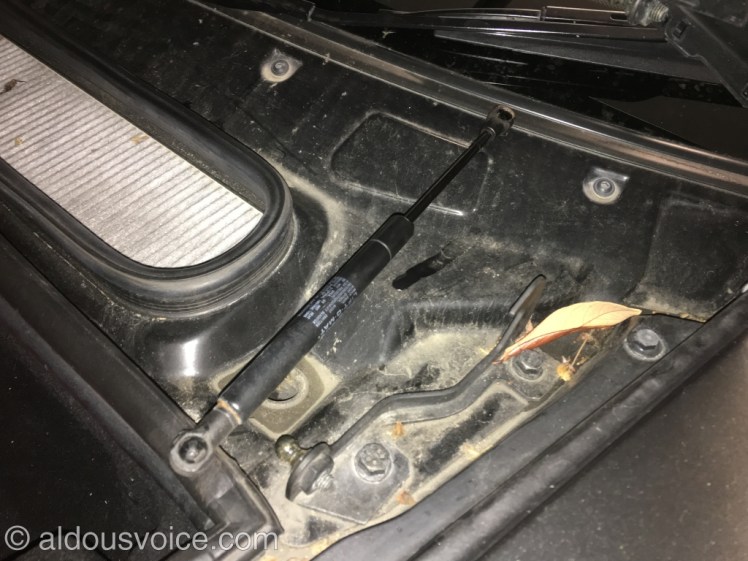

Next the gas struts that hold the bonnet up need to come off.

IMG_0663

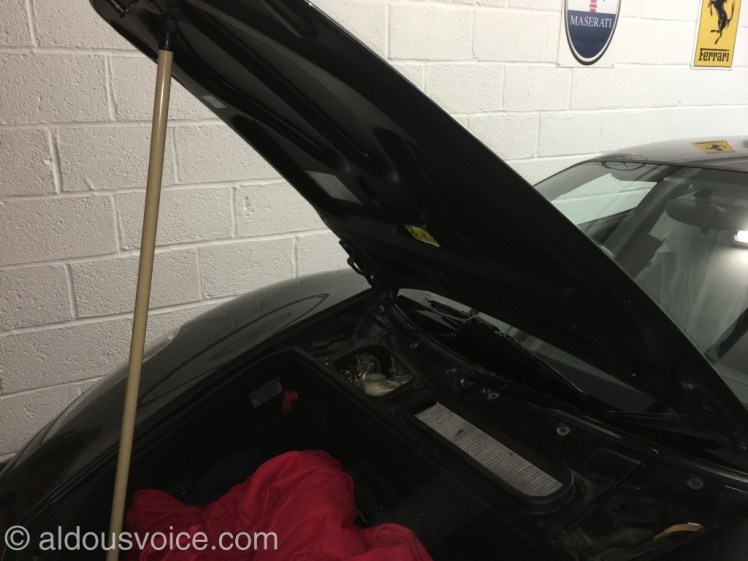

Of course something or someone will need the hold the bonnet up…

IMG_0664

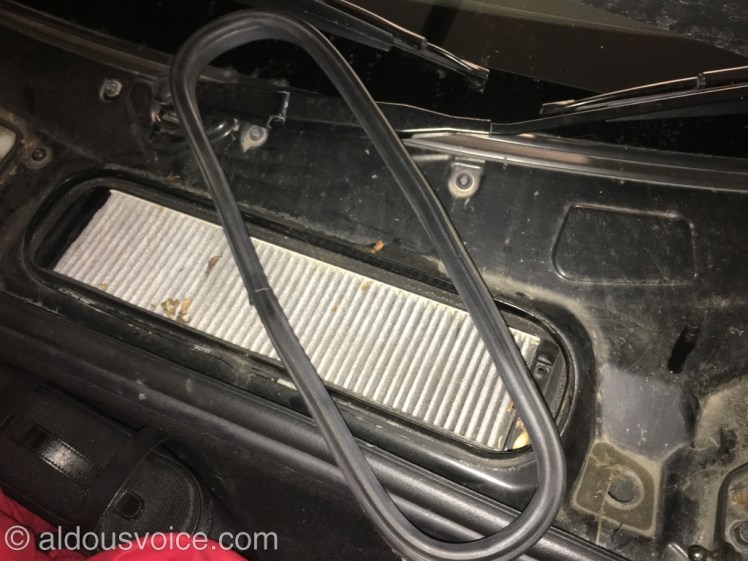

Pull the rubber gasket off the pollen filter housing.

IMG_0665

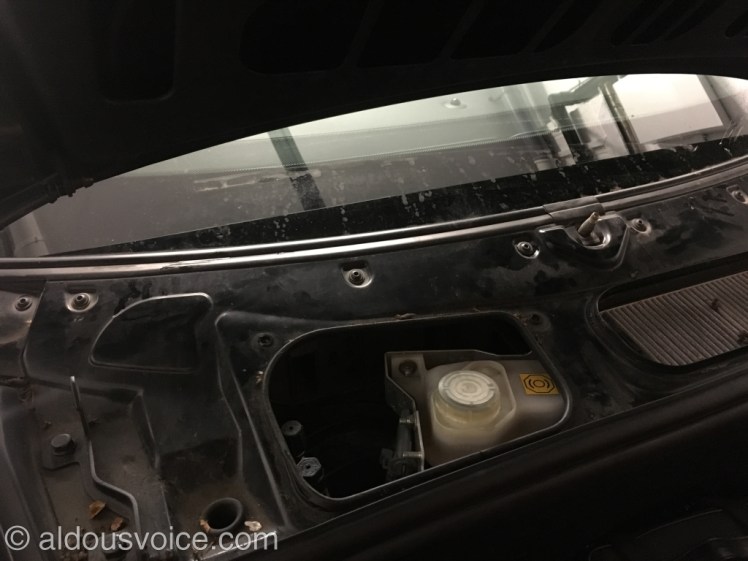

The wipers need to be removed.

IMG_0666

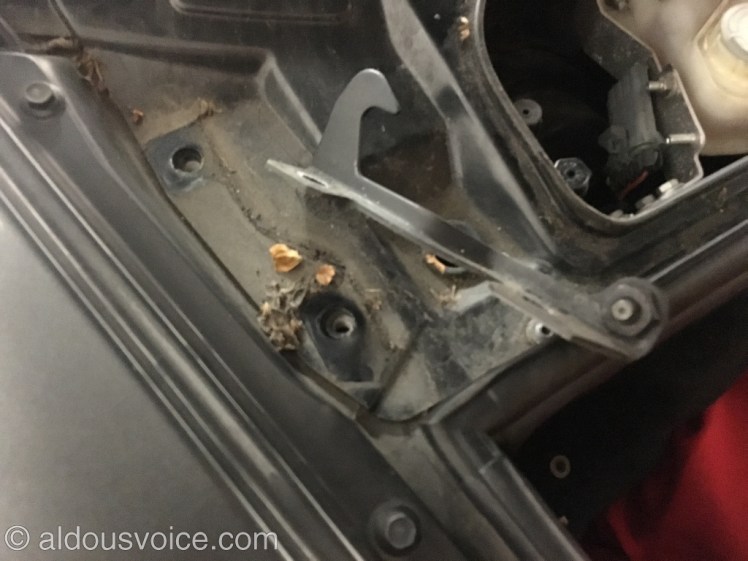

As do the brackets that the struts are fixed to.

IMG_0667

Undo the multitude of hex head fasteners holding the scuttle panel in place.

IMG_0668

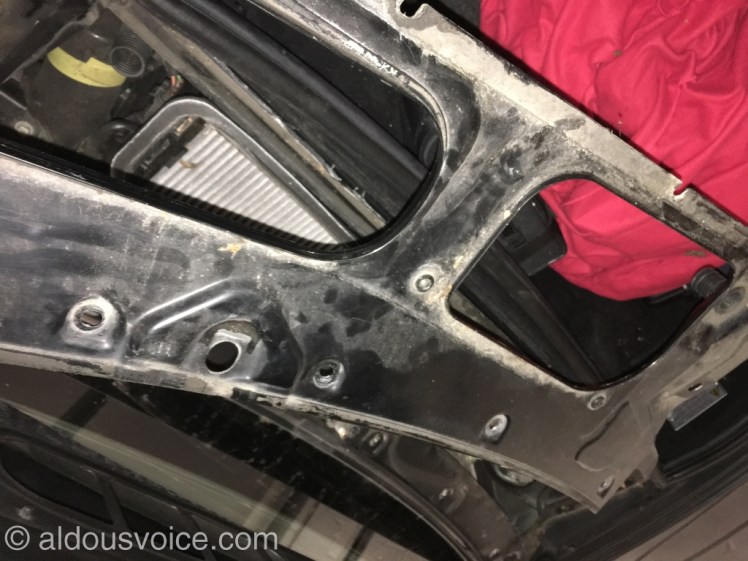

The scuttle can then be removed.  Note that it will be stuck down so a but of force is required to remove it.

IMG_0669

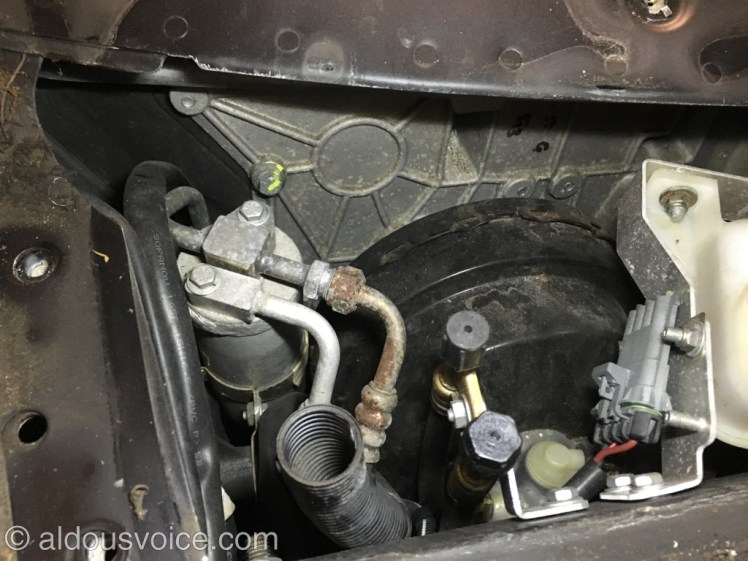

This exposes the receiver.

IMG_0670

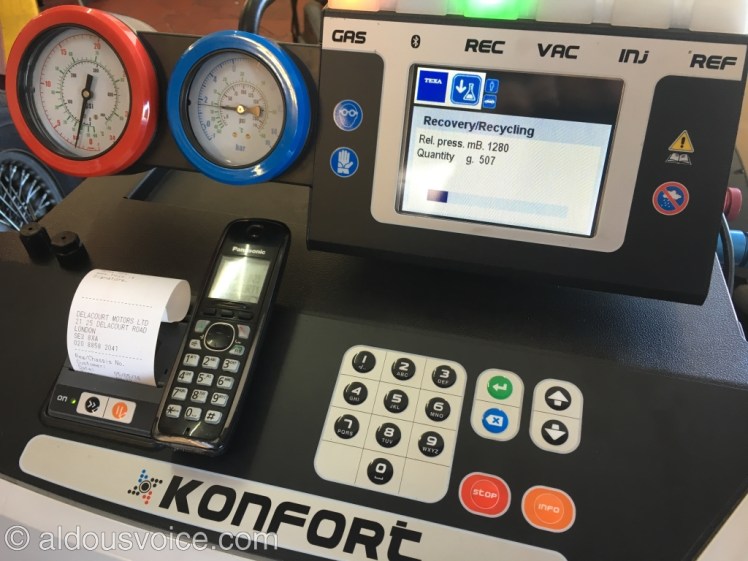

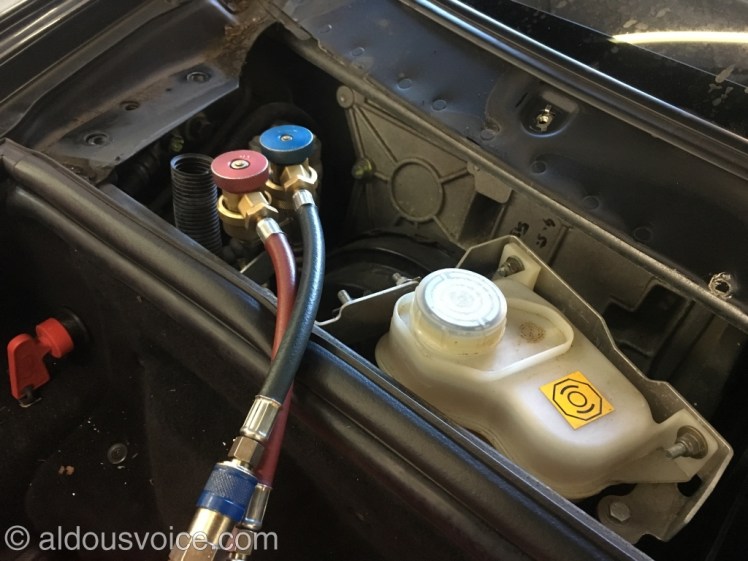

Before the receiver can be disconnected, the refrigerant needs to be extracted from the system.  Note that in the UK it is unlawful to knowingly release refrigerant into the atmosphere.

IMG_0679

IMG_0680

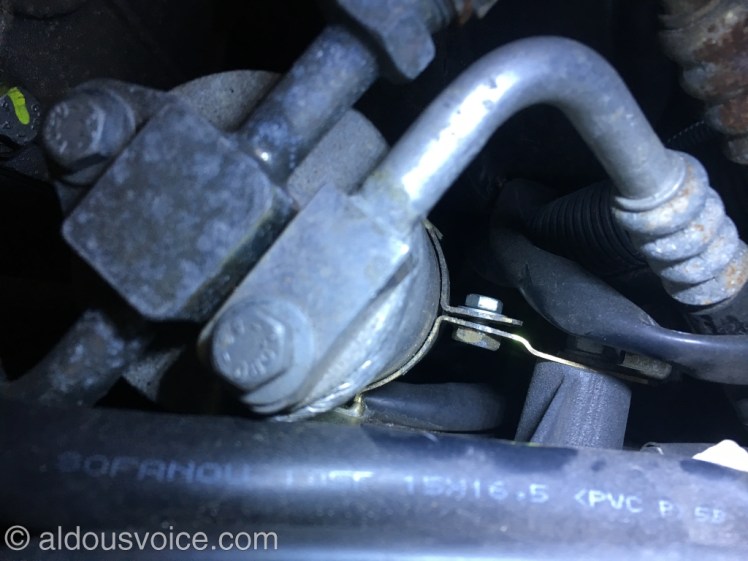

Once the refrigerant has been removed, the bolt tightening the bracket to the receiver needs to be loosened.  Note that it is easier to leave it in place than try and put it back in later.

IMG_0682

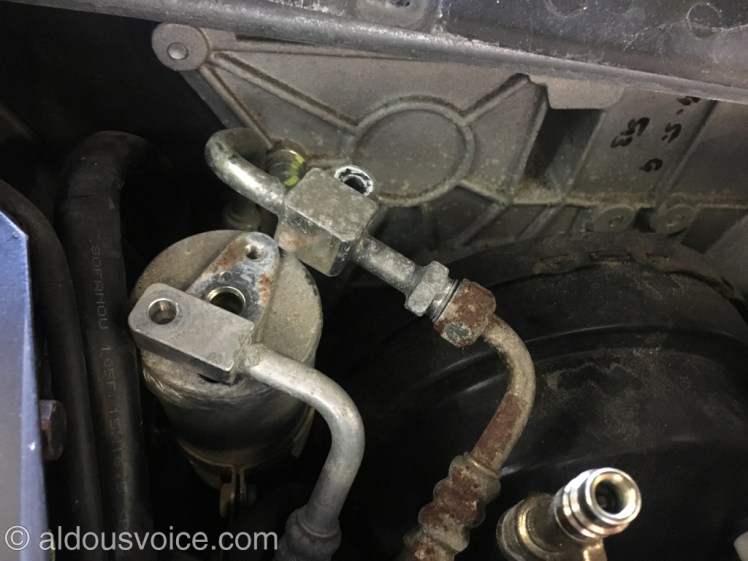

Remove the two M6 bolts holding the connectors on the top of the receiver in place.  This will allow the connectors to be pulled off the receiver.

IMG_0684

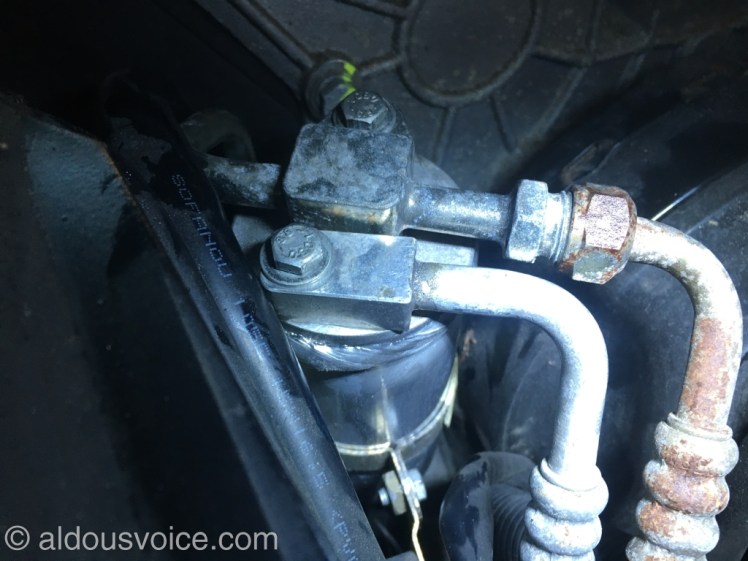

The receiver can now be pulled out of the bracket and replaced.  Use a little polyalkylene glycol (PAG) oil to lubricate the seals before pushing the fittings in.

IMG_0686

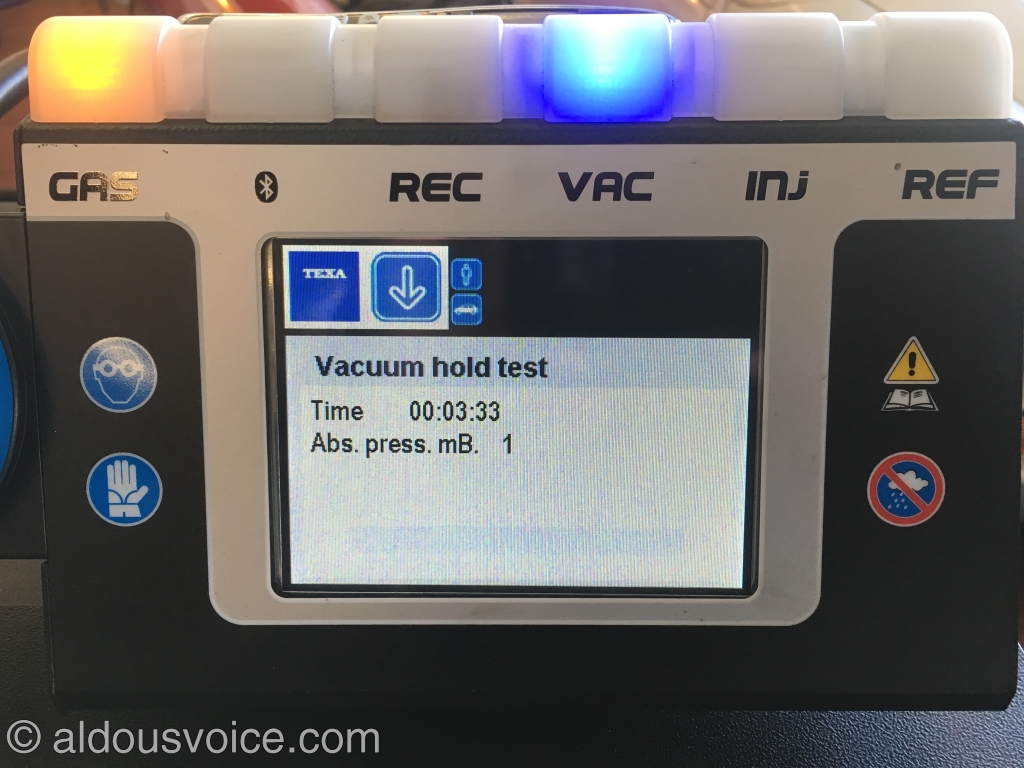

Then it is a matter of testing the system for leaks and filling with refrigerant (750g).  The oil removed from the system should also be replaced.

IMG_0694

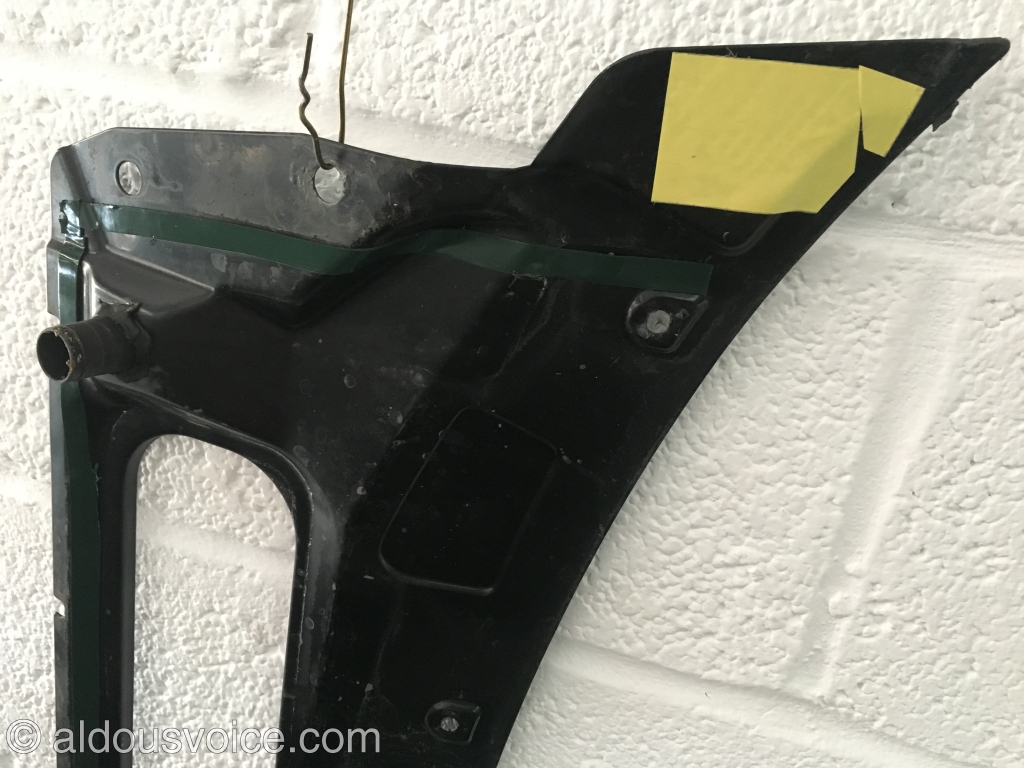

Finally, all the parts removed to gain access need to be refitted.  Renew the doubled sided sticky tape/foam on the underside of the scuttle.

IMG_0695

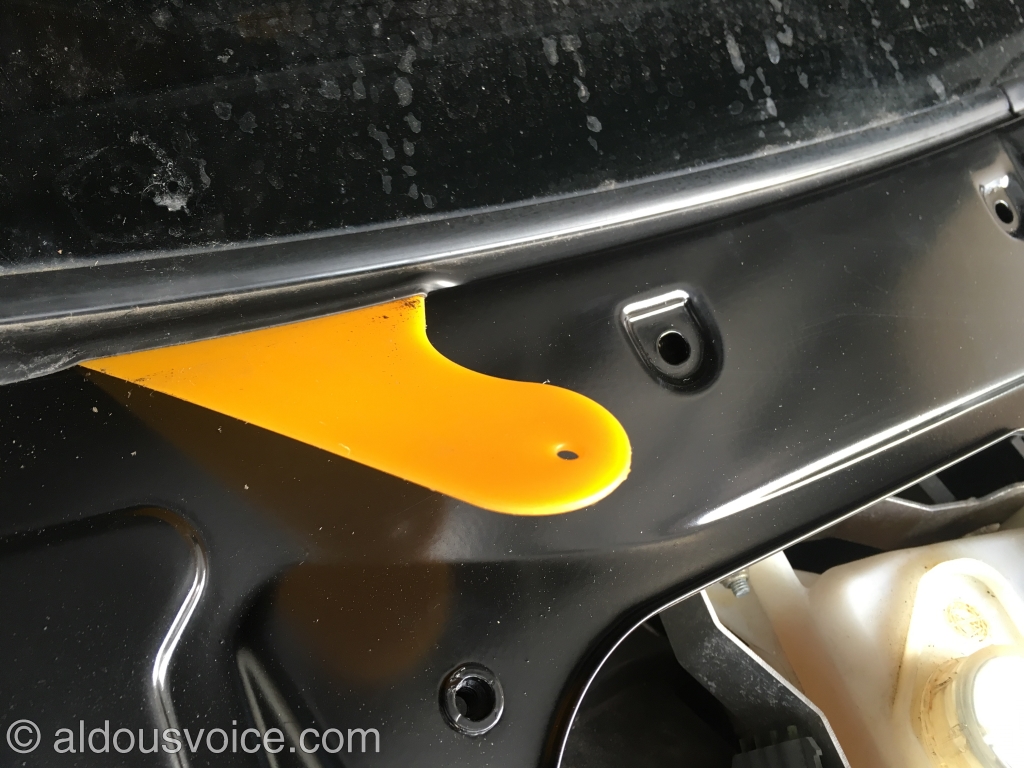

When refitting the scuttle, fit the drain pipe on the pollen filter side and then slide the scuttle under the windscreen seal.  I use a curved plastic scraper to get the seal in the right place.  Once the scuttle is under the seal there is enough room to fit the other drain pipe.

IMG_0696

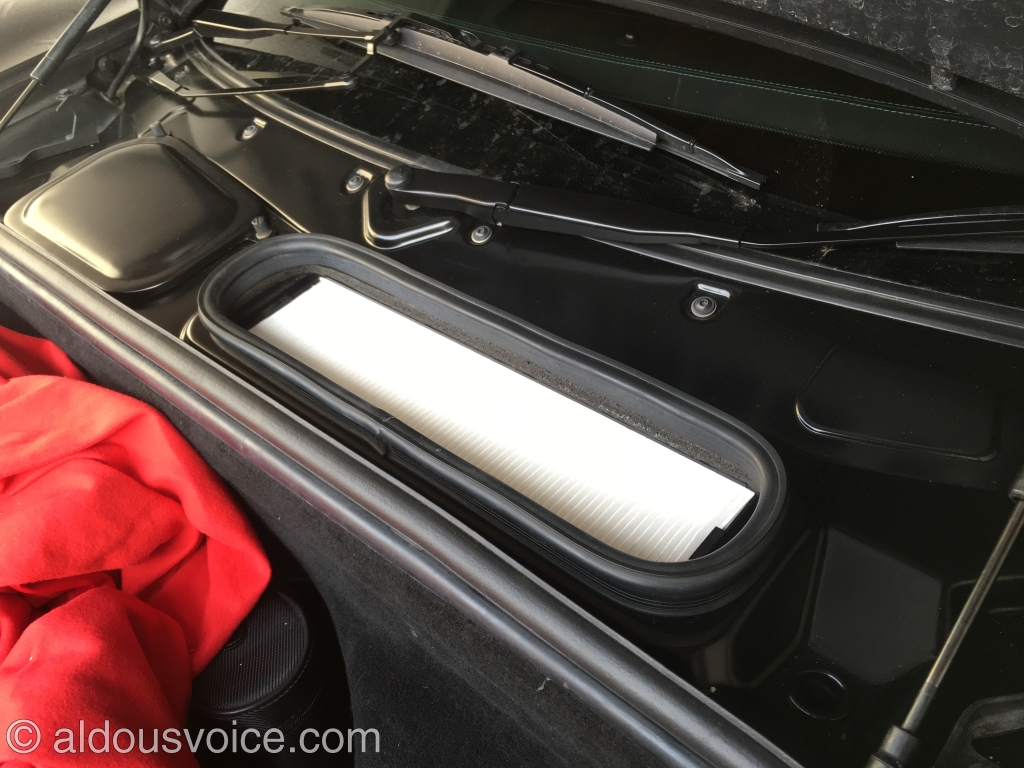

Of course, now is a great time to refurbish the scuttle and wiper arms….

IMG_0697
