Ferrari 360/F430 Clear Side Repeaters

Ferrari have been fitting the same amber side indicators to their models for quite a while.  This post will tell you  how to source clear side repeaters and fit them to your car.  As far as I know it’ll work for the 348, 355, 360, F430, 458, 550, 575, 599 & F12 models.

Firstly you need to source the lenses.  Ferrari didn’t bother to develop a lens themselves but they borrowed from Fiat – the same lens is used on the Fiat Coupe and Barchetta.  You can buy these lenses in the UK but they are for sale at exorbitant prices.  I buy mine from Germany – go to eBay Germany and search for “Fiat Coupe Seitenblinker”.  If you use a browser like Chrome it will translate the page for you.  You are looking for clear lenses (or smoked if you prefer) with free delivery to Germany (for some reason the German vendors refuse to ship to the UK).  You buy these lenses and have them shipped to your German mailbox (see below).  I recently bought a pair of smoked lenses for EUR 6.50.

As I don’t have a German shipping address I set up a free mailbox with Mailboxde.  This service accepts deliveries on your behalf and forwards them on for a small fee.  I recently had some smoked lenses sent on to me for EUR 7.42.

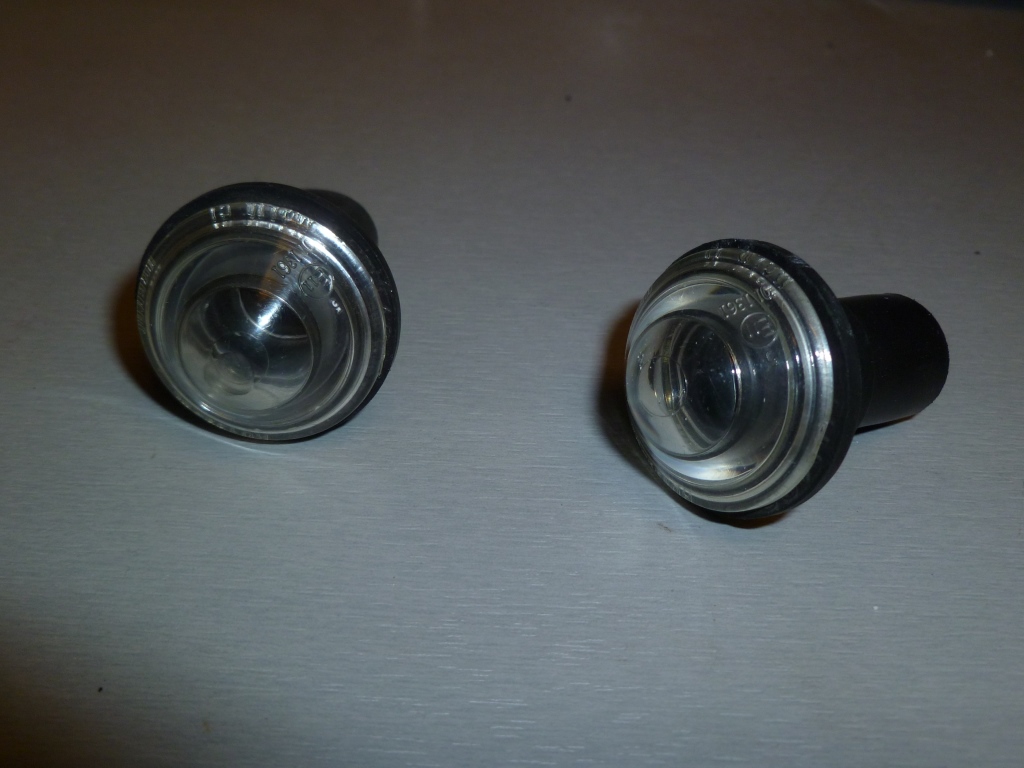

Here are the clear lenses:

P1040776

They will be shipped with some amber bulbs but they will be the incorrect fitting.  You will need to source some alternative bulbs – they are T4W.  I buy mine from eBay – search for “T4W Yellow”.  I recently paid £1.10 for a pair of LED bulbs:

P1040778

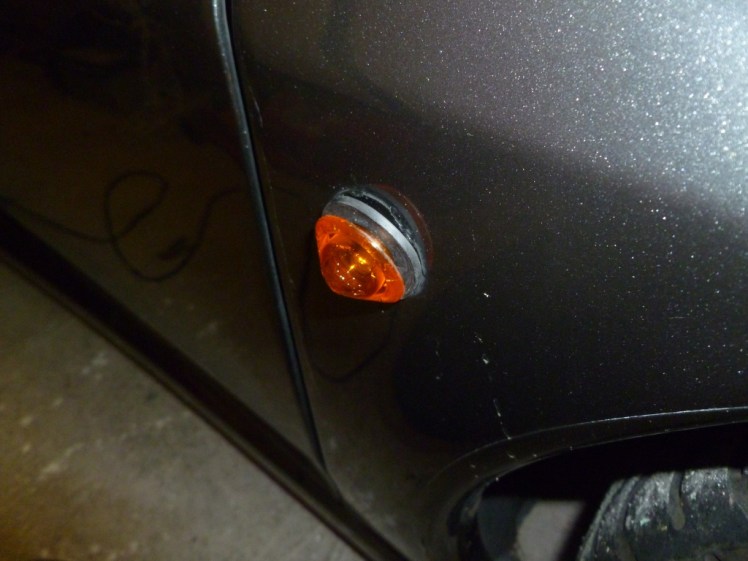

Fitting is straightforward.  Firstly you need to tease the existing lens out with your finger nails:

P1040779

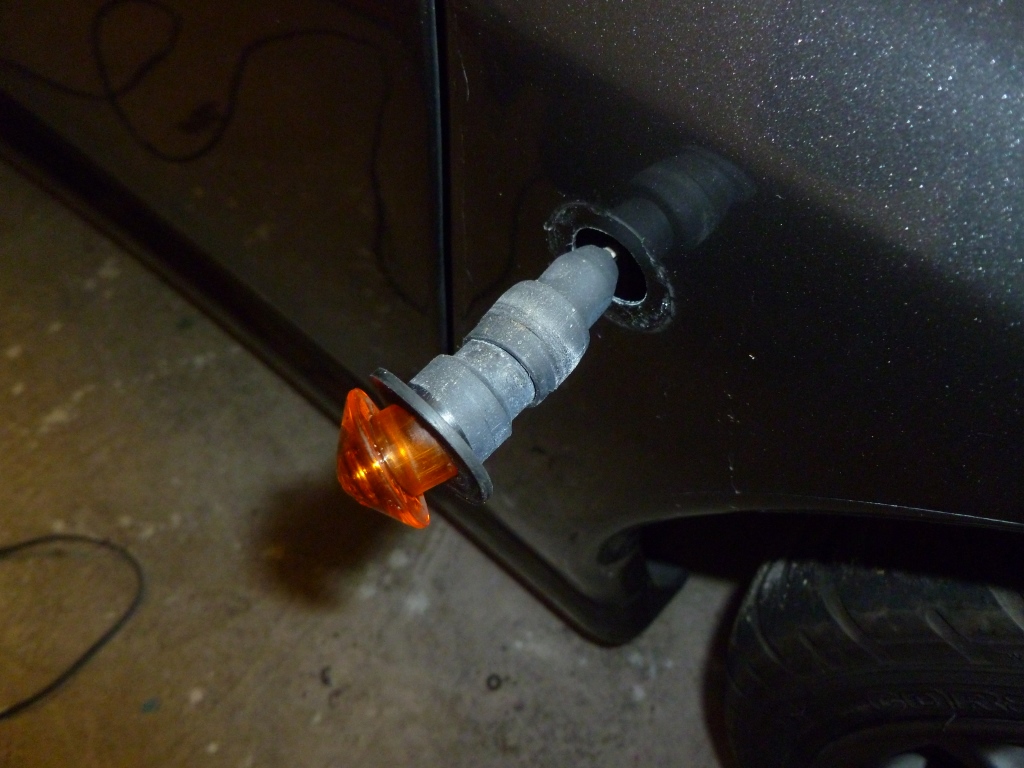

Once it starts to pull out you can carefully remove the lens and wiring harness:

P1040780

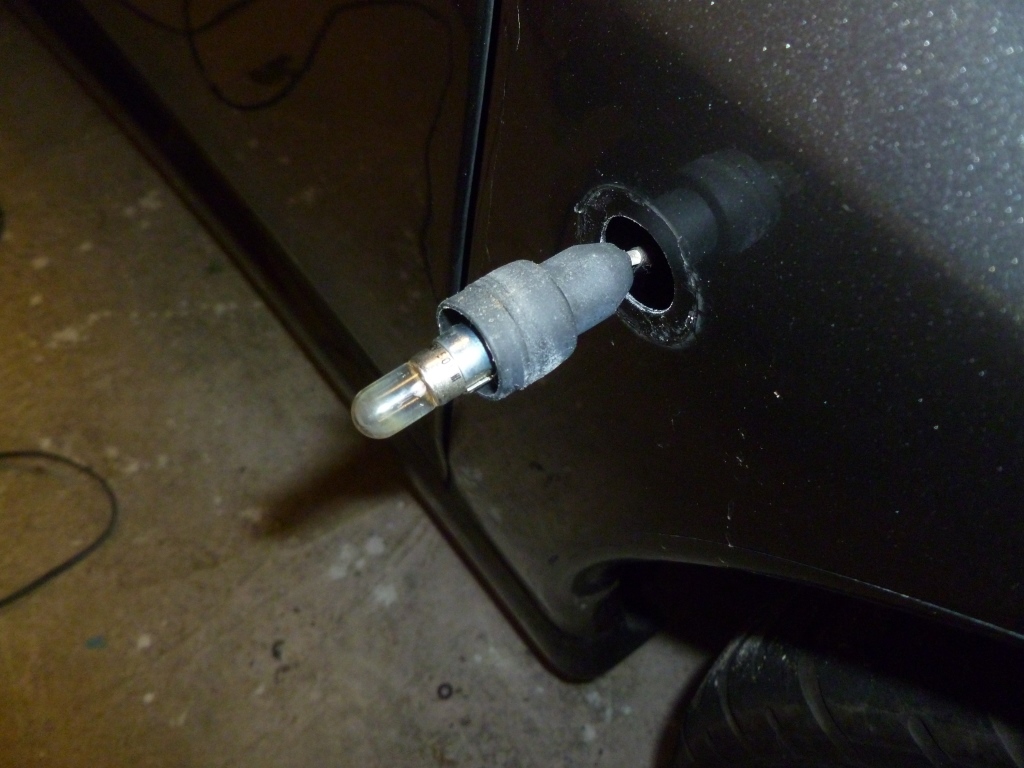

Remove the lens and old rubber mount:

P1040781

Install your new bulb.  It is a good idea to test the operation (LED bulbs can only be fitted one way round):

P1040783

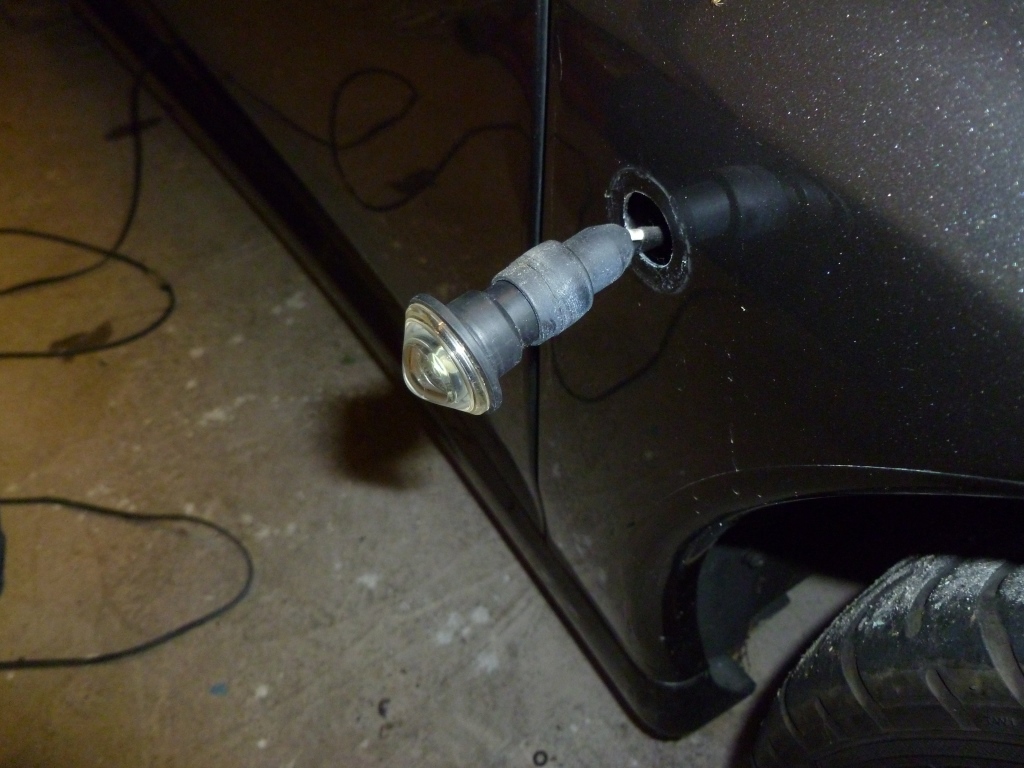

Fit the new clear lenses and make sure the rubber seals properly:

P1040784

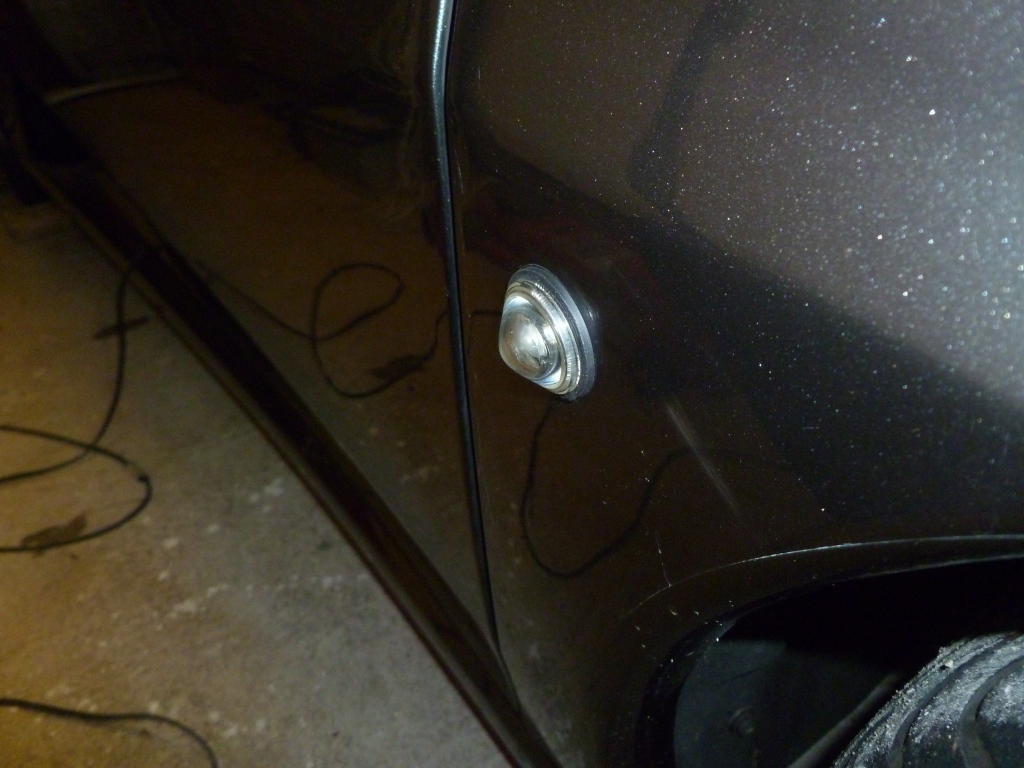

Carefully push it all back into place. Job done!

P1040785

P1040787

Related posts:

Other posts in this category: Bodywork

If you enjoyed this post why not subscribe to this blog for further updates? Simply enter your email address in the box at the bottom of this page.  Your email address will not be shared.


4 thoughts on “Ferrari 360/F430 Clear Side Repeaters

  1. Hi mate,

    Quick question if thats ok. If I fit the led bulbs, surely they flash faster than the old normal bulbs due to the lower wattage? I’ve heard this is a common issue with converting any indicator bulb to led. I know you can add a resistor to counter the effect but I’m really not keen on doing this due to the heat they give out. Would be grateful for any advice.

    Love your website by the way!

    Thanks
    Kc

    1. No problem. I understand what you are asking but I’ve not had any issue with fitting the LED bulbs I’ve pictured (I’ve fitted over 10 pairs to 360’s and F430’s). I guess they have a resistor already in them.

      1. Thanks so much! Will order a set now then. Maybe its just different bulbs people are buying without resistors that are causing the super fast flashing issue.

        Also while its a completely different subject but seeing as you are very knowledgable on the 360, I don’t suppose you know of any solution to another problem I have with my car? When coming to a stop, as soon as I press the clutch, my car doesn’t smooth idle straight away. It make a vroom vroom vroom sound (for lack of a better term) as if its almost stopping itself from stalling. It used to do it occasionally but its now everytime I depress the clutch when stopping. Other people have similar issues but changing maf’s, cleaning ground contacts, cleaning fuel injectors etc all seem not to work for them. Again grateful for any suggestions but many thanks again either way!

        Kc

      2. It could be anything! I would start by reading the errors and the LTFT values and see if that could point you in the right direction. It could be a vacuum leak somewhere so you could smoke test the system. I would also look into detail as to how the idle control works.
        Drop me an email if you wish and we’ll chat offline.
