Ferrari 360 & F430 Gear Lever Bushing

This post applies to manual cars only – if you are having trouble shifting gears, or have some side to side “slack” movement of the gear stick then it may be that your bushing is worn.  Ferrari made one of the bushings under the gear stick from plastic – over time it wears out and can give problems.  Fortunately, Hill Engineering have made an inexpensive all aluminium replacement.  Link below:

Hill Engineering

This post will guide you through replacing this bushing.  It is a moderately difficult DIY task – more fiddly than anything else.

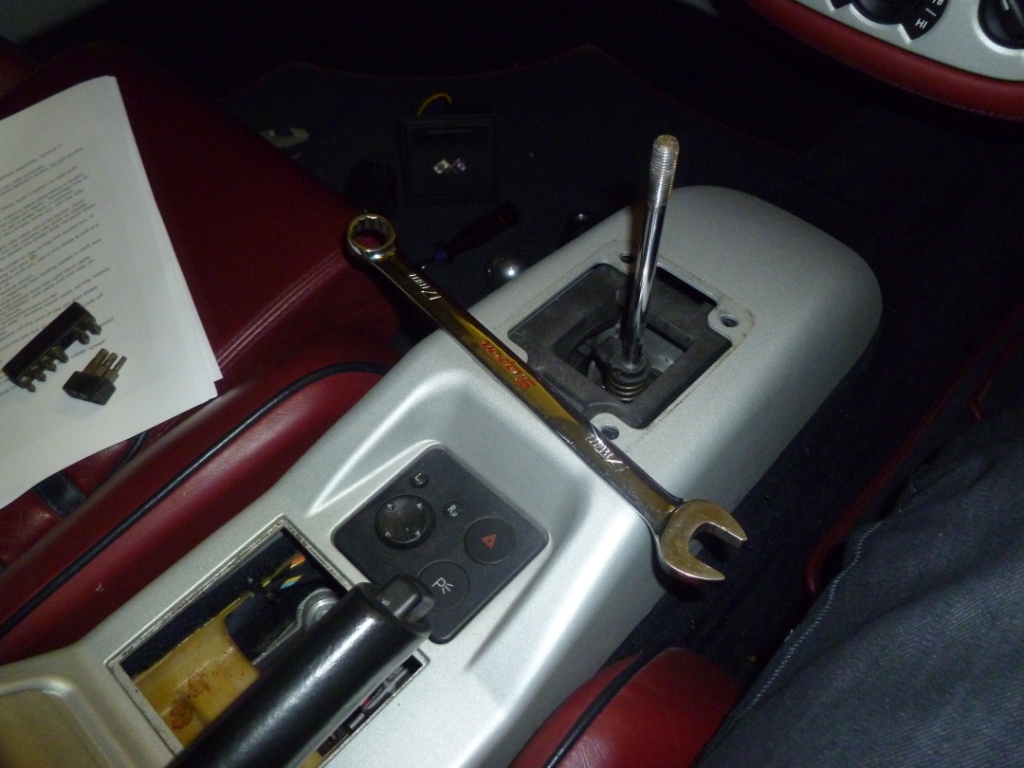

First of all you need to remove the centre console (this applies to the 360, the F430 is slightly different).  Take the gear knob off and the shift gate. Remove the ashtray, undo the hex bolt underneath and also the 13mm bolt under the leather trim at the rear. Snip the zip tie holding the hand brake gaiter on and the console can be removed.

Ferrari 360 Gear Bushing
Ferrari 360 Gear Bushing

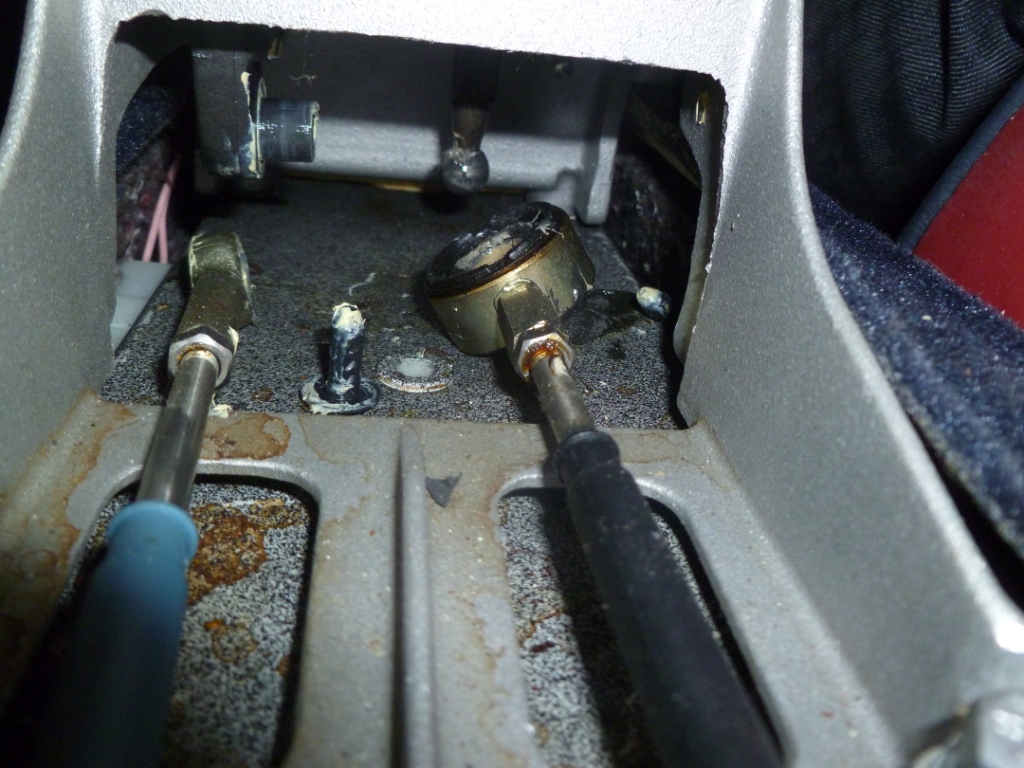

Next the gear shift cables need to be detached from the lever. The left hand one is held in place with the black plastic plug that you can see the in centre of the picture below. The right hand one needs to be prised off with brute force – I use two of screwdrivers side by side.

Ferrari 360 Gear Bushing

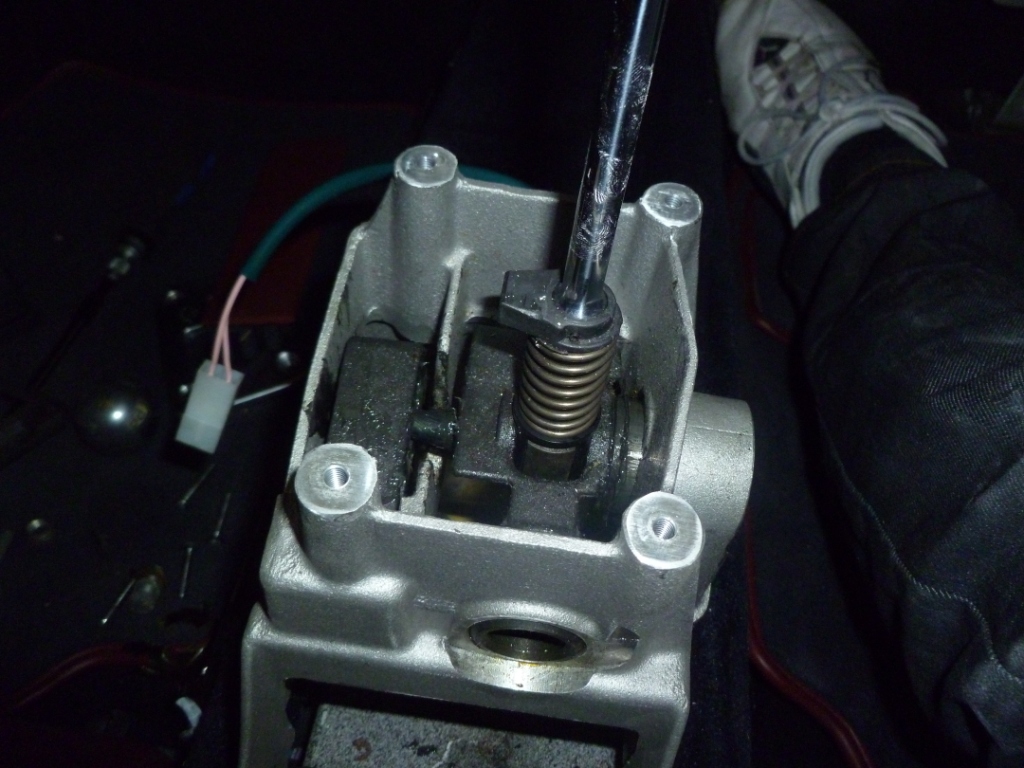

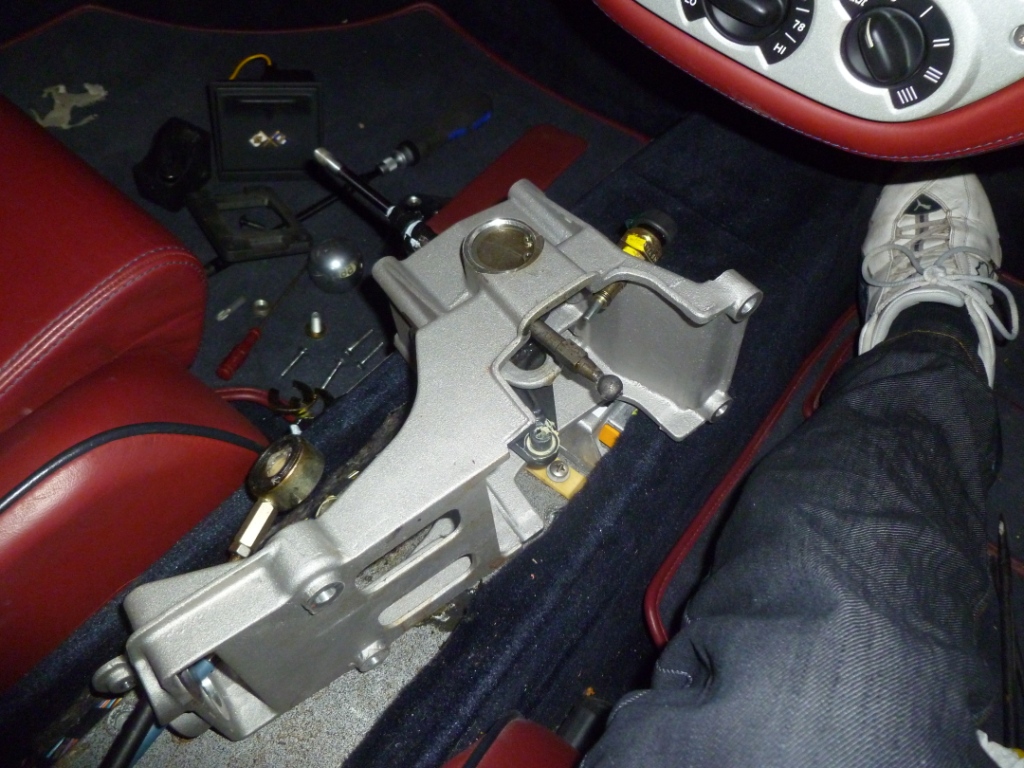

Undo the four 13mm bolts holding the shift mechanism to the floor so it can be moved forward and tilted.  It is possible to do this job with it bolted to the floor but I prefer the greater access.

Ferrari 360 Gear Bushing

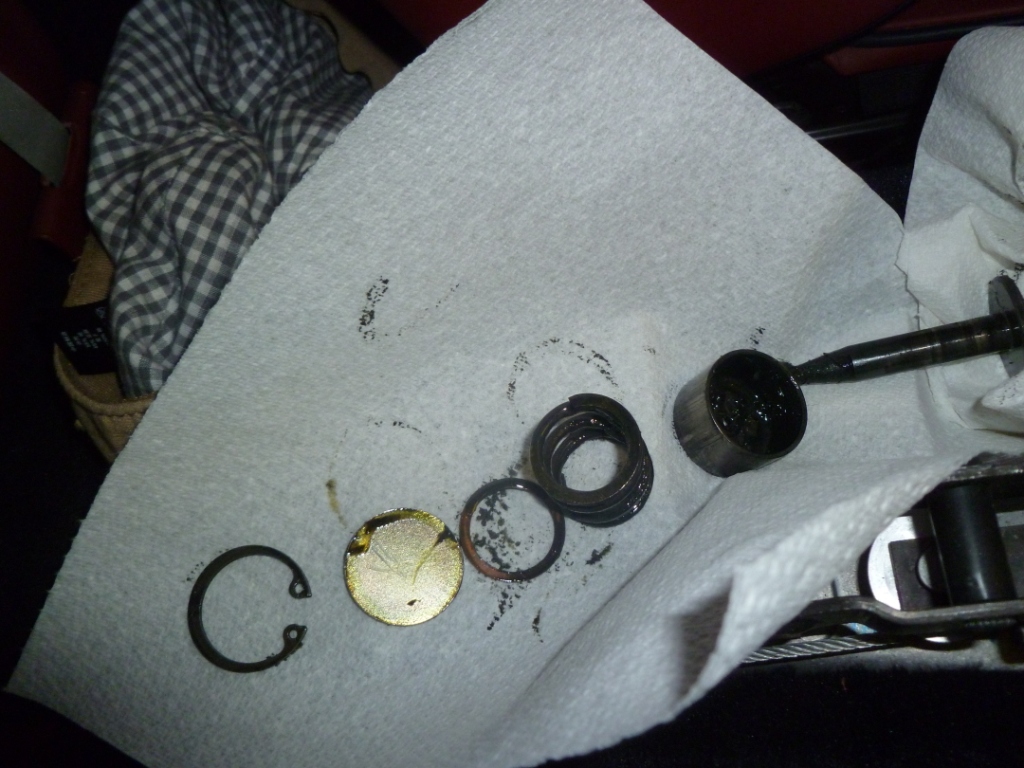

The circlip on the side needs to come out – take care as there is a spring behind it! Here’s what needs to come out from behind the plate:

Ferrari 360 Gear Bushing

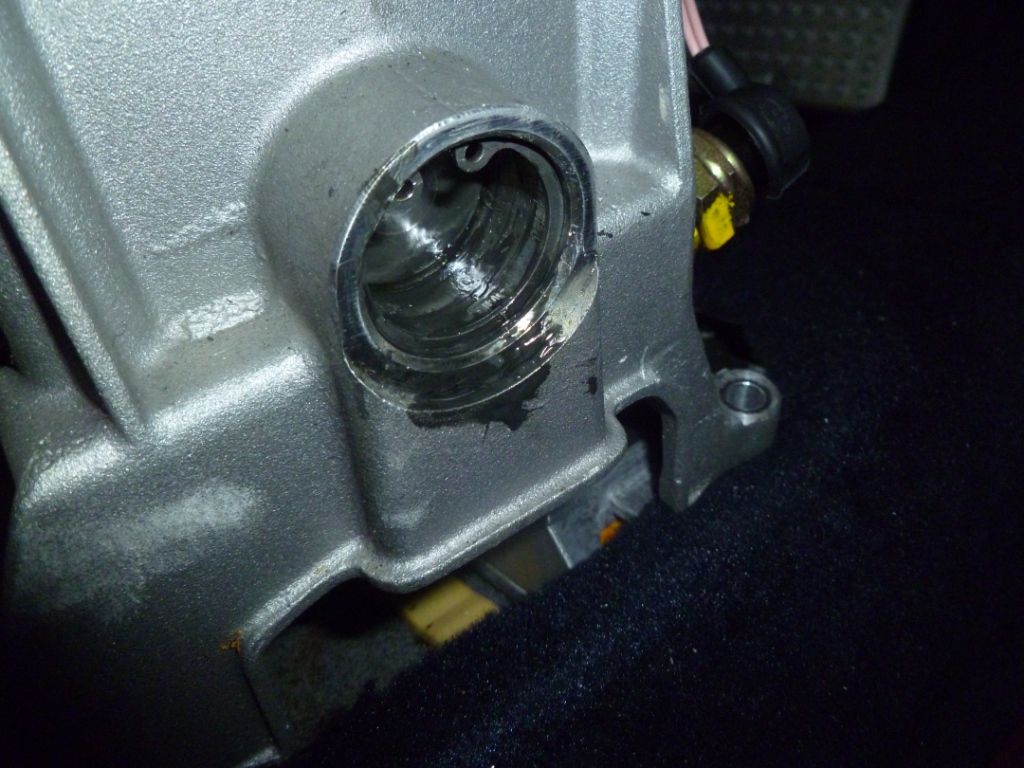

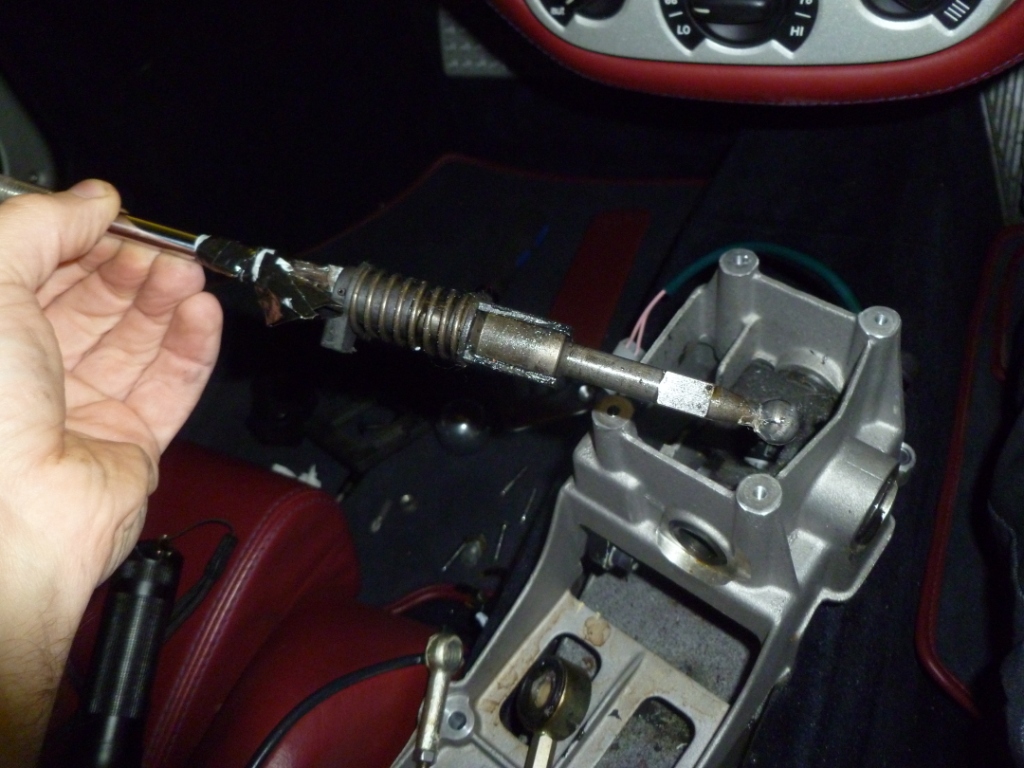

The lever then pulls free…

Ferrari 360 Gear Bushing

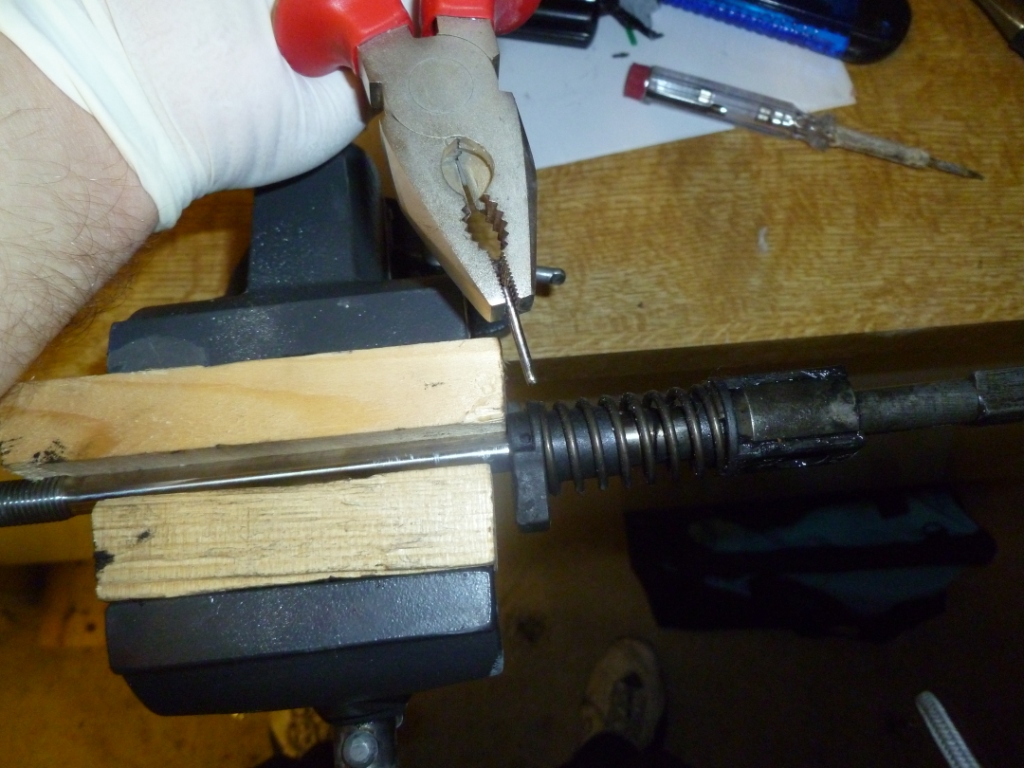

Drift out the pin holding the reverse protection mechanism:

Ferrari 360 Gear Bushing

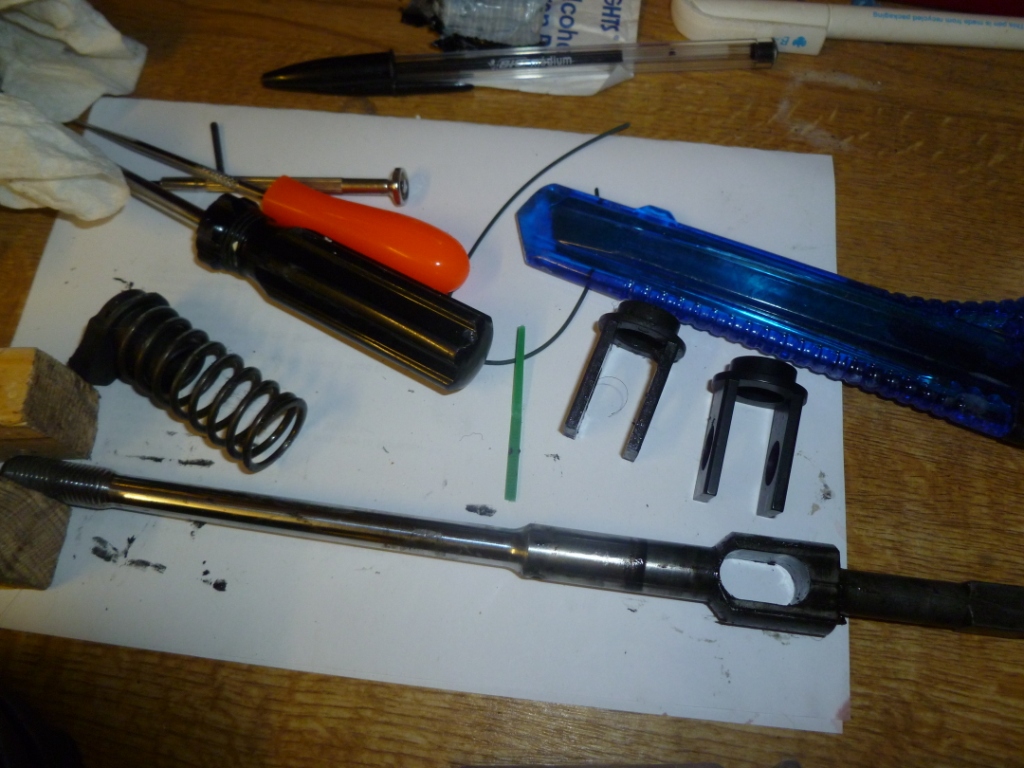

The lever can then be disassembled (the new bush is on the right).

Ferrari 360 Gear Bushing

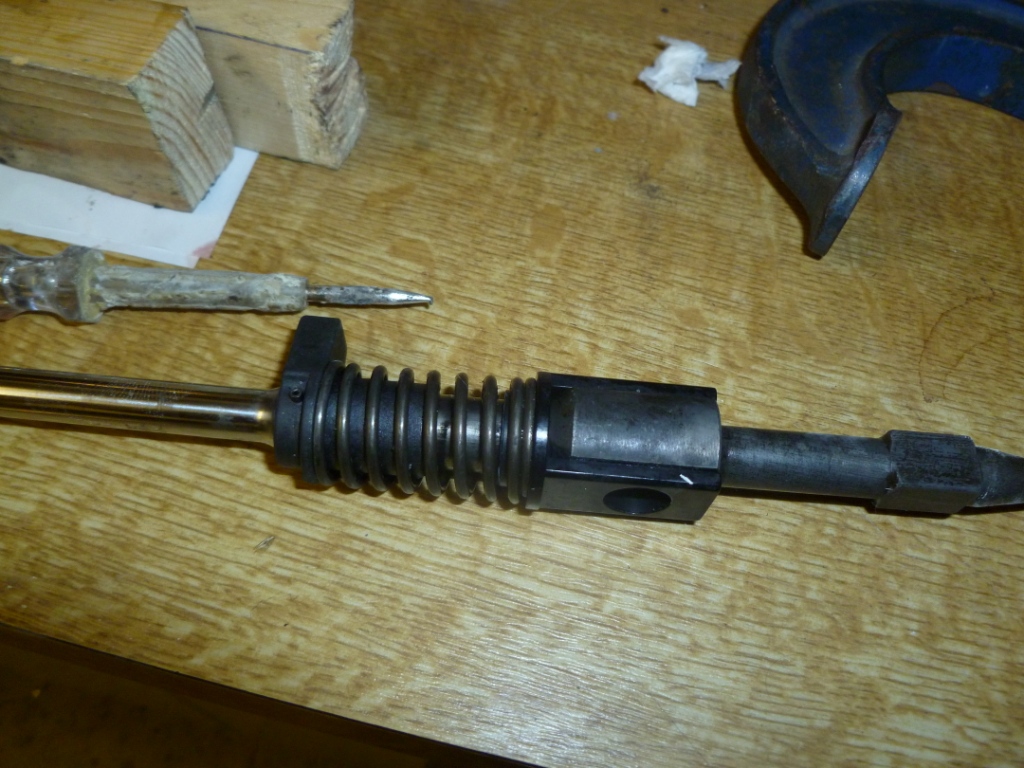

Reassemble with the new bush:

Ferrari 360 Gear Bushing

In order to fit the square plastic bush on the end of the horizontal rod I find it helpful to temporarily fit the circlip on its own and then use a screwdriver to lever the square bush back on. Re-greased everything before putting it back together again.

Ferrari 360 Gear Bushing

Ferrari 360 Gear Bushing

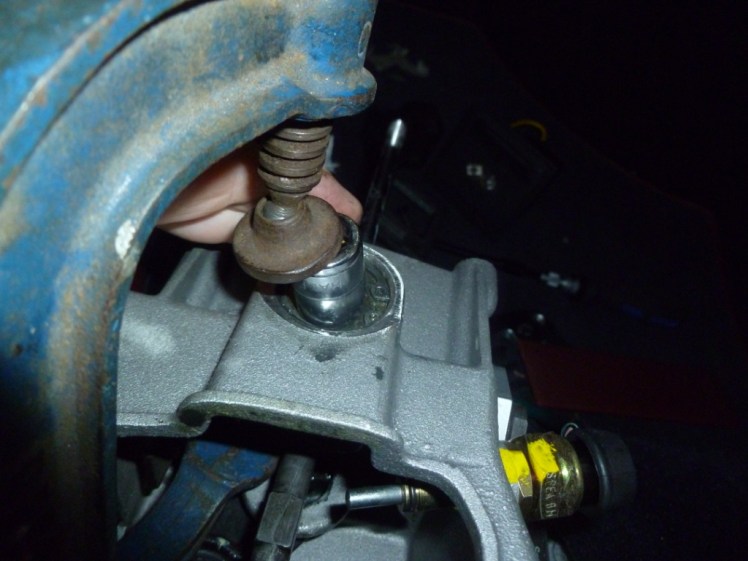

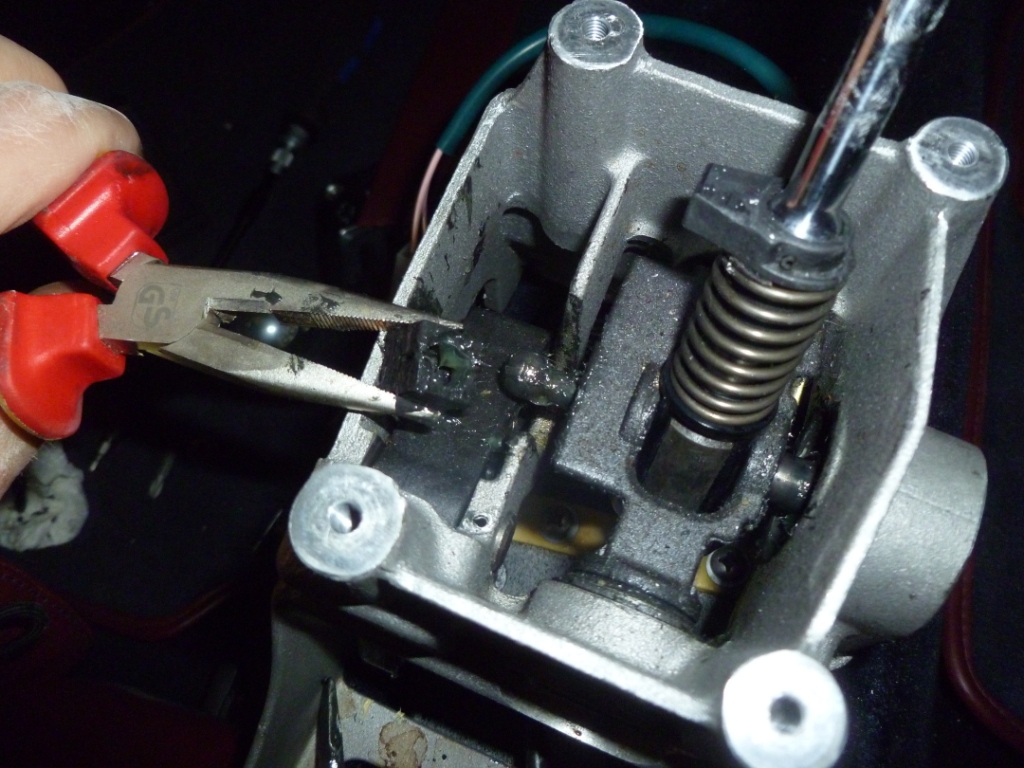

In order to get the spring and other gubbins back in I use a small socket and a g-clamp to compress it down before fitting the circlip.

Ferrari 360 Gear Bushing

Here’s a picture of it all re-assembled:

Ferrari 360 Gear Bushing

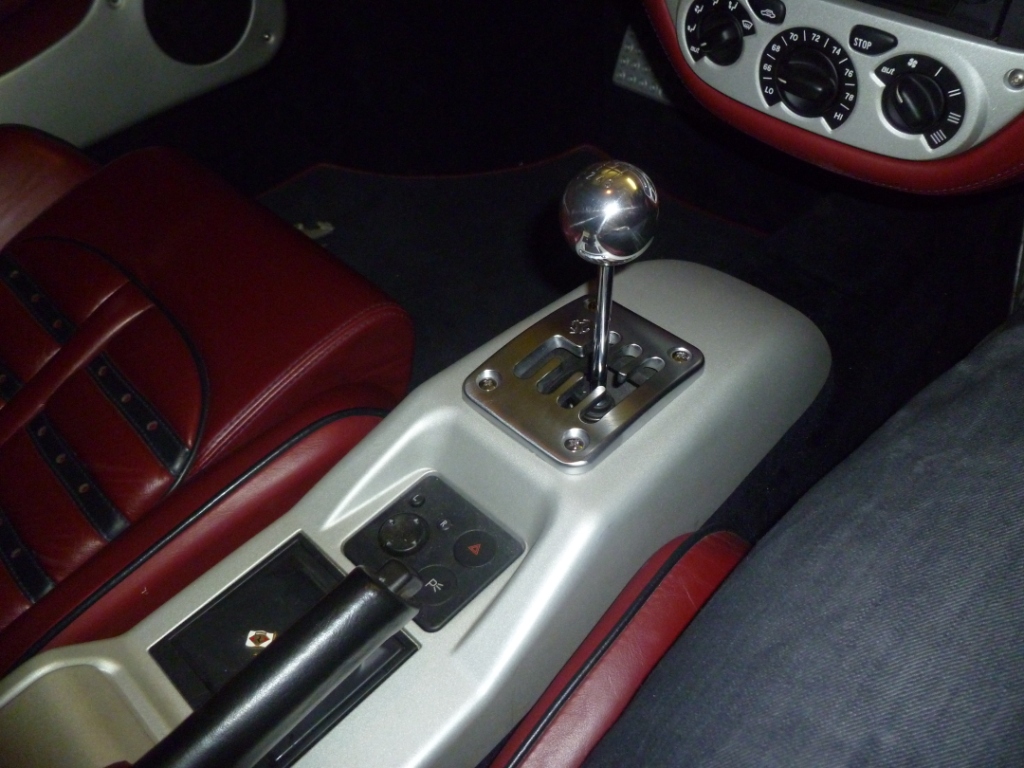

Refit the trim and you’re done.

Ferrari 360 Gear Bushing


4 thoughts on “Ferrari 360 & F430 Gear Lever Bushing

  1. ALDOUS,
    I AM GOING TO CLEAN UP THE GREY CENTER CONSOLE IN MY 99 360 WITH THE F 1 TRANSMISSION. I BEGAN TRYING TO REMOVE THE FOUR BOLTS AROUND THE REVERSE SHIFTER. AS I BEGAN TRYING TO LOOSEN THE FIRST SCREW I NOTICED IT WAS VERY, VERY HARD TO TURN. AS I CONTINUED, IT GOT A LITTLE EASIER TO TURN, THEN VERY HARD UNTIL IT ALMOST WOULD NOT TURN AT ALL.
    FINALLY, THE TOP OF THE SCREW BEGAN TO GRIND AWAY!
    DO YOU KNOW WHY THIS SCREW IS SO TIGHT?
    I DID NOT TRY ANY OF THE OTHER 3 SCREWS.

    1. I’ve got no idea why they’d be stuck. You are probably going to need to source some replacement screws – they are a standard metric thread with a CSK head. I would use an impact screwdriver to remove but this will damage the heads of the screws – hence the need to find replacements.

  2. IS IT DIFFICULT TO REMOVE CATS FROM MY 1999 360?
    I THINK MY CAR WILL RUN COOLER, A LITTLE FASTER AND I AM NOT CONCERNED WITH THESMOG ASPECT OF THIS.

    1. If you have cat delete pipes then yes it is fairly straightforward to physically remove the cats. I don’t know too much about the emissions system on federal spec cars so don’t know if you’d get any warnings.
